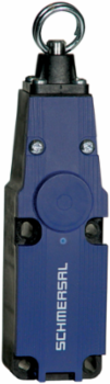

Schmersal 101217791 Pull-wire Switch TQ 700-02 S, IP67, 2 NC Contacts, 160 mm Height
- MPN: 101217791
- PPN: SCM-101217791
CAD
$203.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Pull-wire Switch TQ 700-02 S, IP67, 2 NC Contacts, 160 mm Height
Features
- 1 Cable entry M20
- Thermoplastic enclosure
- vertical mounting
- Large wiring compartment
- Twisting of towing eye not possible
- wire pull detection
- 2 Contacts
Documentation & Downloads
Specifications
Key Specifications

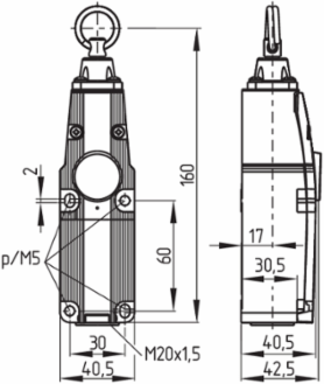

- Width
- 40.5 mm
- Depth
- 42.5 mm
Height160 mm
Electrical data
- Thermal test current
- 10 A
- Switching principle
- Slow action
Switching elementOpener (NC)
Material of the contacts, electricalSilver
Mechanical data - Dimensions
- Width
- 40.5 mm
- Depth
- 42.5 mm
Height160 mm
Ambient conditions - Insulation values
- Rated insulation voltage U
- 500 V
Rated impulse withstand voltage U6 kV
General data - Features

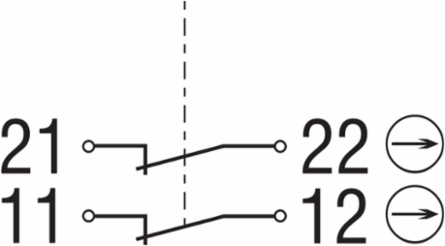

- Number of normally closed (NC)
- 2
General data
- Standards
- EN IEC 60947-5-1
- Material of the housing cover
- Glass-fibre, thermoplastic
Enclosure materialGlass-fibre, thermoplastic
Gross weight150 g
Ambient conditions
- Degree of protection
- IP67
Ambient temperature-25 ... +70 °C
Mechanical data - Connection technique
- Termination
- Screw terminals M20 x 1.5
- Note (Cable section)
- All indications including the conductor ferrules.
Cable section, maximum2.5 mm²
Mechanical data
- Mechanical life, minimum
- 1,000,000 Operations
- Actuating force, maximum
- 101.2 N
Actuating force, minimum74.8 N
Approvals - Standards
- Certificates
- TÜV
