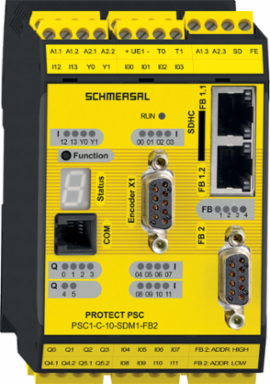

Schmersal 103008446 Safety Controller PSC1-C-10 with 14 Safe Inputs, 2 Safety Relay Contacts, IP20
- MPN: 103008446
- PPN: SCM-103008446
CAD
$2660.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Safety Controller PSC1-C-10 with 14 Safe Inputs, 2 Safety Relay Contacts, IP20
Features
- Memory card
- conversion of the field bus protocols by software
- integrated SD-Bus-Gateway
- Safe drive monitoring according to EN 61800-5-2 (SDM – Safe Drive Monitoring) for 1 axis
- Modular expansion with up to 64 inputs / outputs
- 4 safe 2 A pp-switching semiconductor outputs, switchable to 2 safe p- / n-switching semiconductor outputs
- 14 safe inputs on the base module
- 2 Signalling outputs
- 2 safety relay contacts
Documentation & Downloads
Specifications
Key Specifications
- Width
- 67.5 mm
- Depth
- 115 mm
Height100 mm
Electrical data
- Operating voltage
- 24 VDC -15 % / +20 %
Rated operating voltage24 VDC
Mechanical data - Dimensions
- Width
- 67.5 mm
- Depth
- 115 mm
Height100 mm
Ambient conditions - Insulation values
- Overvoltage category
- III
Degree of pollution2
Scope of delivery
- Scope of delivery
- Backplane bus connector | Connector terminals
Electrical data - Spindle monitoring
- Number of axis monitoring, max.
- 1
Drive monitoring, encoder typTTL | SINCOS | Proximity switch
General data - Features
- SD Card Slot
- Yes
- Master-Master-Kommunikation
- Yes
- Number of pulse outputs (test pulse output)
- 2
- Number of digital fail-safe inputs
- 14
- Number of signalling outputs
- 2
Master-Slave-KommunikationYes
Integrated SD gatewayYes
Number of relay outputs (1-channel)2
Number of fail-safe digital outputs4
Anzahl der Erweiterungsbaugruppen, maximal2
General data
- Terminal (mechanical)
- Removable screw terminals
Gross weight582 g
Safety classification
- Performance Level, up to
- e
- PFH value
- 1.26 x 10⁻⁸ /h
- Mission time
- 20 Year(s)
Category4
Safety Integrity Level (SIL), suitable for applications in3
Electrical data - Safety digital outputs
- Rated operating current (safety outputs)
- 2,000 mA
Design of control elementsshort-circuit proof, p-type (Q2 und Q3)
Ambient conditions
- Degree of protection
- IP20
- Storage and transport temperature, minimum
- -25 °C
- Relative humidity, minimum
- 5 %
- Note (Relative humidity)
- non-condensing
Ambient temperature+0 ... +50 °C
Storage and transport temperature, maximum+70 °C
Relative humidity, maximum85 %
Permissible installation altitude above sea level, maximum2,000 m
Mechanical data - Connection technique
- Cable section, minimum
- 0.2 mm²
- Wire cross-section, minimum
- 24 AWG
- Wire cross-section
- 24 ... 12 AWG
Cable section, maximum2.5 mm²
Wire cross-section, maximum12 AWG
Electrical data - Safe relay outputs
- Voltage, Utilisation category AC-15
- 230 VAC
- Voltage, Utilisation category DC-13
- 24 VDC
Current, Utilisation category AC-152 A
Current, Utilisation category DC-132 A
Electrical data - Communication protocols
- Feldbus Protokoll
- CANopen | PROFIBUS
Mechanical data
- Mounting
- can be clipped into standard rail
Approvals - Standards
- Certificates
- TÜV | cULus
Electrical data - Electromagnetic compatibility (EMC)
- Electromagnetic compatibility
- DIN EN 62061 | DIN EN 61800-3
- EMC rating
- DIN EN 61000-6-7 | DIN EN 61326-3 | DIN EN 61000-6-2
Interfering radiationDIN EN 61000-6-4
Electrical data - Universal communication interface
- Designation, Communication interface
- DSUB
