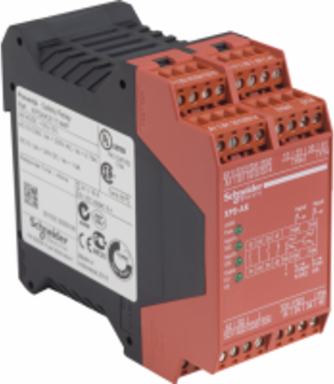

Schneider Electric XPSAK311144P Module XPSAK - Emergency stop - 24 V AC DC
- MPN: XPSAK311144P
- UPC: 785901291657
- PPN: SCH-XPSAK311144P
CAD
$364.92
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Module XPSAK - Emergency stop - 24 V AC DC
Documentation & Downloads
Specifications
Complementary
- Synchronisation time between inputs
- 2 or 4 s depending of wiring (automatic start)
- Supply frequency
- 50/60 Hz
- Control circuit voltage
- 24 V DC
- Breaking capacity
- C300: 1800 VA, AC-15 (inrush) relay output
- Breaking capacity
- 1.5 A at 24 V (DC-13) time constant: 50 ms for relay output
- [Ith] conventional free air thermal current
- 18 A
- Associated fuse rating
- 4 A fuse type gG or gL for relay output conforming to EN/IEC 60947-5-1, DIN VDE 0660 part 200
- Minimum output voltage
- 17 V for relay output
- [Ui] rated insulation voltage
- 300 V (degree of pollution: 2) conforming to IEC 60947-5-1
- [Uimp] rated impulse withstand voltage
- 4 kV overvoltage category III conforming to IEC 60947-5-1
- Current consumption
- 30 mA at 24 V AC (on power supply)
- Product weight
- 0.66 lb(US) (0.3 kg)
Synchronisation time between inputsUnlimited (manual start)
Input protection typeInternal, electronic
Line resistance28 Ohm
Breaking capacityC300: 180 VA, AC-15 (holding) relay output
Output thermal current6 A per relay relay output
Associated fuse rating6 A fuse type fast blow for relay output conforming to EN/IEC 60947-5-1, DIN VDE 0660 part 200
Minimum output current10 mA for relay output
[Ui] rated insulation voltage300 V (degree of pollution: 2) conforming to DIN VDE 0110 part 1
[Uimp] rated impulse withstand voltage4 kV overvoltage category III conforming to DIN VDE 0110 part 1
Local signalling4 LEDs
Mounting support35 mm symmetrical DIN rail
Main
- Commercial Status
- Commercialised
- Product or component type
- Preventa safety module
- Safety module application
- For emergency stop, switch, sensing mat/edges or safety light curtain monitoring
- Function of module
- Monitoring of a movable guard associated with 2 switches and automatic start
- Function of module
- Emergency stop monitoring 1-channel wiring
- Function of module
- Multiple emergency stop monitoring 2-channel wiring
- Function of module
- Sensing mat and edges monitoring
- Safety level
- Can reach PL e/category 4 conforming to EN/ISO 13849-1
- Safety reliability data
- MTTFd = 154.5 years conforming to EN/ISO 13849-1
- Type of start
- Configurable
- Connections - terminals
- Captive screw clamp terminals, removable terminal block, clamping capacity: 2 x 0.25...2 x 1 mm² flexible cable with cable end, with double bezel
- Connections - terminals
- Captive screw clamp terminals, removable terminal block, clamping capacity: 2 x 0.2...2 x 1 mm² solid cable with cable end, with double bezel
- Connections - terminals
- Captive screw clamp terminals, removable terminal block, clamping capacity: 1 x 0.2...1 x 2.5 mm² solid cable with cable end, with double bezel
- Output type
- Relay instantaneous opening 3 NO, volt-free
- [Us] rated supply voltage
- 24 V DC (- 15...10 %)
Range of productPreventa Safety automation
Safety module nameXPSAK
Function of moduleMonitoring of electro-sensitive protection equipment (ESPE)
Function of moduleMonitoring of a movable guard
Function of moduleEmergency stop with 2 NC contacts monitoring 2-channel wiring
Function of moduleProximity sensor monitoring
Safety levelCan reach SILCL 3 conforming to EN/IEC 62061
Safety reliability dataPFHd = 7.39E-9 1/h conforming to EN/IEC 62061
Safety reliability dataDC > 99 % conforming to EN/ISO 13849-1
Connections - terminalsCaptive screw clamp terminals, removable terminal block, clamping capacity: 2 x 0.5...2 x 1.5 mm² flexible cable with cable end, with double bezel
Connections - terminalsCaptive screw clamp terminals, removable terminal block, clamping capacity: 2 x 0.2...2 x 1.5 mm² flexible cable with cable end, with double bezel
Connections - terminalsCaptive screw clamp terminals, removable terminal block, clamping capacity: 1 x 0.25...1 x 2.5 mm² flexible cable with cable end, with double bezel
Connections - terminalsCaptive screw clamp terminals, removable terminal block, clamping capacity: 1 x 0.2...1 x 2.5 mm² flexible cable with cable end, with double bezel
Number of additional circuits1 NC + 4 solid state outputs
[Us] rated supply voltage24 V AC (- 15...10 %)
Environment
- Standards
- EN 1088/ISO 14119
- Standards
- EN/IEC 60947-5-1
- Product certifications
- CSA
- Product certifications
- UL
- IP degree of protection
- IP20 (terminals) conforming to EN/IEC 60529
- Ambient air temperature for storage
- -13...185 °F (-25...85 °C)
StandardsEN/IEC 60204-1
StandardsEN/ISO 13850
Product certificationsTÃœV
IP degree of protectionIP40 (enclosure) conforming to EN/IEC 60529
Ambient air temperature for operation14...131 °F (-10...55 °C)
Ordering and Shipping Details
- Category
- 22477 - SAFETY MODULES (PREVENTA)
- GTIN
- 00785901291657
- Product availability
- Stock - Normally stocked in distribution facility
- Country of origin
- ID
Discount ScheduleSAF2
Nbr. of units in pkg.1
ReturnabilityY
Contractual Warranty
- Warranty period
- 18 months
