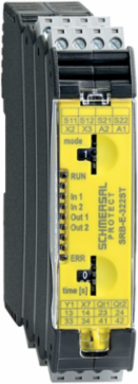

Schmersal 103008184 Safe Signal Processing Relay with 3 Safety Contacts & 6A Switching Capacity
- MPN: 103008184
- PPN: SCM-103008184
CAD
$699.78
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory

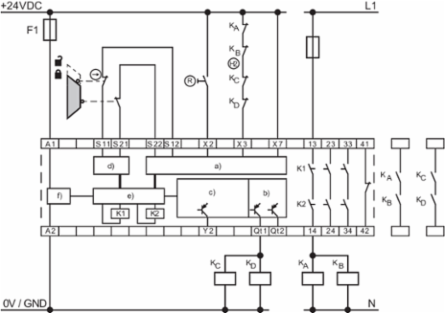

Spec sheet
Description
Safe Signal Processing Relay with 3 Safety Contacts & 6A Switching Capacity
Features
- STOP 0 / 1 Function
- 1 oder 2-channel control
- 3 safety contacts STOP 0
- 2 Safety outputs STOP 1
- Drop-out delay 0 … 30
Documentation & Downloads
Specifications
Key Specifications
- Width
- 22.5 mm
- Depth
- 115 mm
Height98 mm
Electrical data - Relay outputs (auxiliary contacts)
- Switching capacity, maximum
- 24 VDC
Switching capacity, maximum1 A
Electrical data
- Operating voltage
- 24 VDC -20 % / +20 %
- Rated operating voltage
- 24 VDC
- Rated control voltage at DC, maximum
- 28.8 VDC
- Contact resistance, maximum
- 0.1 Ω
- Drop-out delay in case of power failure, typically
- 10 ms
- Pull-in delay at automatic start, maximum, typically
- 150 ms
- Switching frequency, maximum
- 0.3 Hz
Ripple voltage10 %
Rated AC voltage for controls at DC minimum19.2 VDC
Electrical power consumption3 W
Note (Contact resistance)in new state
Drop-out delay in case of emergency, typically10 ms
Pull-in delay at RESET, typically150 ms
Material of the contacts, electricalAg-Ni, self-cleaning, positive drive
Mechanical data - Dimensions
- Width
- 22.5 mm
- Depth
- 115 mm
Height98 mm
Ambient conditions - Insulation values
- Rated impulse withstand voltage U
- 4 kV
- Overvoltage category
- III
Rated impulse withstand voltage U0.8 kV
Degree of pollution2
Electrical data - Digital Output
- Voltage, Utilisation category DC-12
- 24 VDC
Current, Utilisation category DC-120.1 A
General data - Features
- Stop-Category
- 0 | 1
- Cross-circuit detection
- Yes
- Start input
- Yes
- Automatic reset function
- Yes
- Earth connection detection
- Yes
- Integral system diagnostics, error code
- Yes
- Number of LEDs
- 6
- Number of normally open (NO)
- 1
- Number of safety digital outputs, Stop 1
- 2
Wire breakage detectionYes
Removable TerminalsYes
Feedback circuitYes
Reset edge detectionYes
Integral system diagnostics, statusYes
Number of auxiliary contacts1
Number of normally closed (NC)2
Number of Safety contacts, STOP 03
Number of signalling outputs1
General data
- Standards
- EN IEC 62061 | EN ISO 13849-1 | EN IEC 60947-5-1 | EN IEC 60947-5-3 | EN IEC 60947-5-5 | EN IEC 61508 | EN IEC 60204-1 | EN IEC 60947-1
- Gross weight
- 180 g
Enclosure materialGlass-fibre reinforced thermoplastic, ventilated
Safety classification
- Standards
- EN ISO 13849-1 | EN IEC 62061 | EN IEC 61508
- Category
- 4
- PFH value
- 1.25 x 10⁻⁸ /h
- Safety Integrity Level (SIL), suitable for applications in
- 3
- Common Cause Failure (CCF), minimum
- 65
- PFD value
- 2.42 x 10⁻⁵
Performance Level, up toe
Diagnostic Coverage (DC) Level> 94 %
PFD value5.30 x 10⁻⁵
Mission time20 Year(s)
PFH value2.66 x 10⁻⁹ /h
Electrical data - Safety digital outputs
- Voltage drop U
- 0.5 V
- Voltage, Utilisation category DC-12
- 24 VDC
- Voltage, Utilisation category DC-13
- 24 VDC
Leakage current I1 mA
Current, Utilisation category DC-122 A
Current, Utilisation category DC-132 A
Other data
- Note (applications)
- Safety sensor | Guard system | hinged safety guard | Emergency-Stop button | Pull-wire emergency stop switches | Safety light curtain | Safety light barriers
Ambient conditions
- Degree of protection of the enclosure
- IP40
- Degree of protection of clips or terminals
- IP20
- Storage and transport temperature, minimum
- -40 °C
- Resistance to vibrations
- 10 ... 55 Hz, Amplitude 0.35 mm
Degree of protection of the mounting spaceIP54
Ambient temperature-25 ... +60 °C
Storage and transport temperature, maximum+85 °C
Restistance to shock30 g / 11 ms
Mechanical data - Connection technique
- Termination
- rigid or flexible | Screw connection, plug-in
- Cable section, minimum
- 0.25 mm²
- Tightening torque of Clips
- 0.5 Nm
Terminal designationsIEC/EN 60947-1
Cable section, maximum2.5 mm²
Electrical data - Safe relay outputs
- Voltage, Utilisation category AC-15
- 230 VAC
- Voltage, Utilisation category DC-13
- 24 VDC
- Switching capacity, minimum
- 10 VDC
- Switching capacity, maximum
- 250 VAC
Current, Utilisation category AC-154 A
Current, Utilisation category DC-134 A
Switching capacity, minimum10 mA
Switching capacity, maximum6 A
Mechanical data
- Mechanical life, minimum
- 10,000,000 Operations
MountingSnaps onto standard DIN rail to EN 60715
Approvals - Standards
- Certificates
- TÜV | cULus | CCC
Electrical data - Electromagnetic compatibility (EMC)
- EMC rating
- EMC-Directive
Electrical data - Digital inputs
- Conduction resistance, maximum
- 40 Ω
Status indication
- Indicated operating states
- Internal operating voltage U | Baustein-Status | Fault codes
