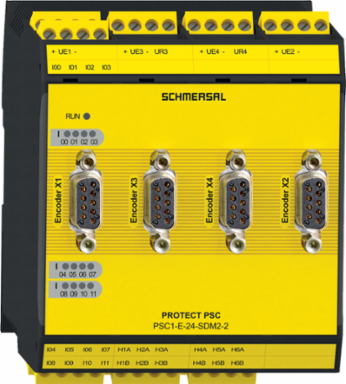

Schmersal 103008464 Safety Controller 24 VDC, IP20, 100 mm Height, 767 g Weight
- MPN: 103008464
- PPN: SCM-103008464
CAD
$2121.65
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Safety Controller 24 VDC, IP20, 100 mm Height, 767 g Weight
Documentation & Downloads
Specifications
Key Specifications
- Width
- 90 mm
- Depth
- 115 mm
Height100 mm
Electrical data
- Operating voltage
- 24 VDC -15 % / +20 %
Rated operating voltage24 VDC
Mechanical data - Dimensions
- Width
- 90 mm
- Depth
- 115 mm
Height100 mm
Ambient conditions - Insulation values
- Overvoltage category
- III
Degree of pollution2
Scope of delivery
- Scope of delivery
- Backplane bus connector | Connector terminals
Electrical data - Spindle monitoring
- Number of axis monitoring, max.
- 2
Drive monitoring, encoder typSSI | HTL | TTL | SINCOS | Proximity switch | Resolver
General data - Features
- Number of digital fail-safe inputs
- 12
General data
- Terminal (mechanical)
- Removable screw terminals
Gross weight767 g
Safety classification
- Performance Level, up to
- e
- Safety Integrity Level (SIL), suitable for applications in
- 3
Category4
Mission time20 Year(s)
Ambient conditions
- Degree of protection
- IP20
- Storage and transport temperature, minimum
- -25 °C
- Relative humidity, minimum
- 5 %
- Note (Relative humidity)
- non-condensing
Ambient temperature+0 ... +50 °C
Storage and transport temperature, maximum+70 °C
Relative humidity, maximum85 %
Permissible installation altitude above sea level, maximum2,000 m
Mechanical data - Connection technique
- Cable section, minimum
- 0.2 mm²
- Wire cross-section, minimum
- 24 AWG
- Wire cross-section
- 24 ... 12 AWG
Cable section, maximum2.5 mm²
Wire cross-section, maximum12 AWG
Mechanical data
- Mounting
- can be clipped into standard rail
Approvals - Standards
- Certificates
- TÜV | cULus
Electrical data - Electromagnetic compatibility (EMC)
- Electromagnetic compatibility
- DIN EN 62061 | DIN EN 61800-3
- EMC rating
- DIN EN 61000-6-7 | DIN EN 61326-3 | DIN EN 61000-6-2
Interfering radiationDIN EN 61000-6-4
