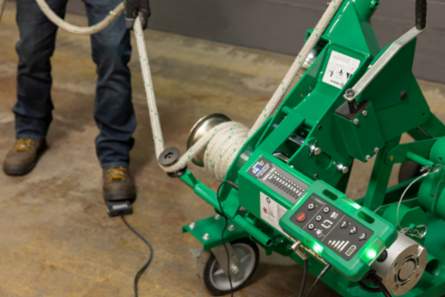

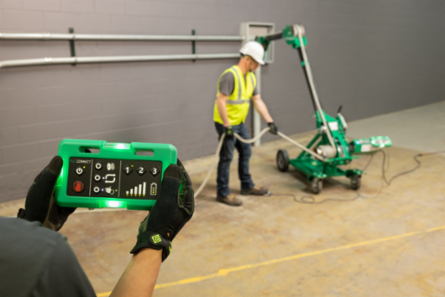

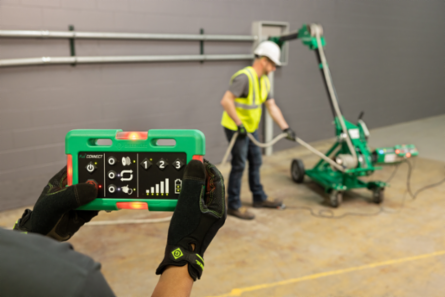

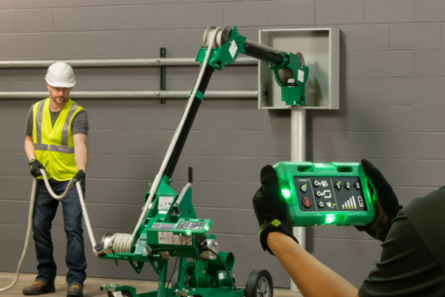

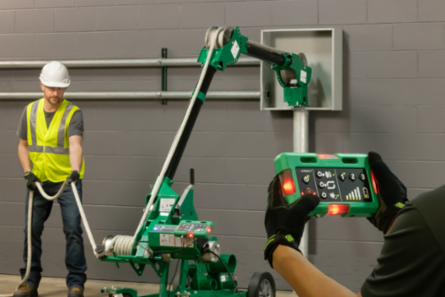

Greenlee GX10-GPC GX10 10k Tugger™ Package with VersiBoom™ and Pull Connect
- MPN: GX10-GPC
- UPC: 783310001539
- PPN: GRN-GX10-GPC
- UNSPSC: 72141122
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
GX10 10k Tugger™ Package with VersiBoom™ and Pull Connect
Features
- Faster pulls up to 10,000 lbs at a high continuous pulling force
- Multi-purpose heavy-duty foot switch allows hands-free speed and operation control
- Right angle sheave keeps operators safely out of the direct line of pulls
- Adaptable mount options for built-in versatility
- GX10 is compatible with Greenlee UT10 mounts, foot pedals and accessories
- Multi-purpose footswitch controls speed and start/stop operation, keeping the operator out of the line of fire
- Sets up in less than 2 minutes and can be used in every pulling situation.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Length
- 50 IN / 1270 MM
- Weight
- 400 LB / 181.4059 KG
- Min Operating Temperature
- 5 F / -15 C
- Color
- Green, Black
- Material
- Steel
- Number of Handles
- 1
- Capacity Min
- 0 MM
- Cord Length
- 8.17 FT / 2.49022 MT

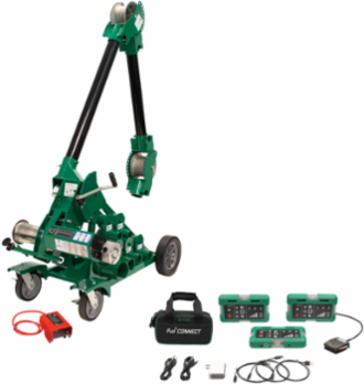

- Kit Includes
- GX10, G-294, MVB, GPC03
Width30 IN / 762 MM
Height74 IN / 1879.6 MM
Product Warranty12
Max Operating Temperature95 F / 35 C
ShapeRectangle
PowerAC
Handle TypeNormal
Capacity Max0 MM
Load10,000 lbs. peak pulling force with a continuous pulling rating of 6,500 lbs
Accessories Included00563 Adapter Weldment - 2" Adapter Weldment 00564 Adapter Weldment - 2 - 1/2" Adapter Weldment 00565 Adapter Weldment - 3" Adapter Weldment 00566 Adapter Weldment - 3 - 1/2" Adapter Weldment 00567 Adapter Weldment -4" Adapter Weldment 00610 Adapter Weldment -5" Adapter Weldment
Motor Information
- Type
- DC Brushed Permanent Magnet
- Wattage
- 2280
- Horsepower
- 2
- Torque
- 15600 INP / 1762 NTM
Voltage120 VLT
Amperage19
RPM18
Battery Information
- Included
- Yes 3
- Composition
- Lithium Ion
- Packaging
- Batteries contained in equipment
RequiredNo
Life8 hours
Advertised Voltage3.63
Regulations
- SDS Required
- No
- CA Prop 65 Reproductive Harm
- Yes
- RoHS Regulations
- Yes
CA Prop 65 CancerYes
CA Prop 65 Chemcial NamesLEAD
REACH CompliantNo
