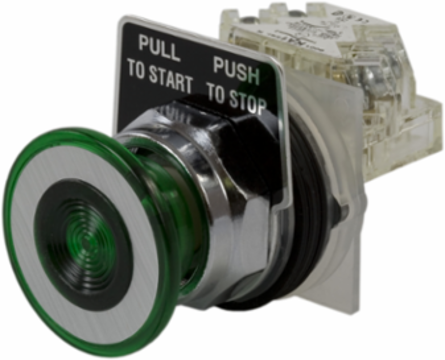

Square D 9001KR9GH13 Push-button, Harmony 9001K, metal, mushroom 41mm, green, 30mm, 2 positions, push-pull, 1 C/O
Square D 9001KR9GH13 Push-button, Harmony 9001K, metal, mushroom 41mm, green, 30mm, 2 positions, push-pull, 1 C/O
- MPN: 9001KR9GH13
- UPC: 785901034117
- PPN: SCH-9001KR9GH13
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$220.83/ EA
Description
This Harmony 9001K, modular green push button has 2 positions and operates with a stay-put mechanism. It has a chromium-plated metal bezel, a round shape and 40mm mushroom head and 1 x NO + 1 x NC contacts. This 40mm mushroom shaped push button head is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to a prominent mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
Specifications
Offer Sustainability
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP121006EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
Complementary
- Contacts Type And Composition
- 1 C/O
- [Ie] Rated Operational Current
- 10 A, AC-15 || 10 A, DC-13
- Contact Operation
- standard
- Light Source
- without
- Mounting Diameter
- 30 mm
- Type Of Operator
- push-pull
- Cap/Operator Or Lens Colour
- green
- Device Presentation
- complete product
Bezel Materialmetal
Connections - Terminalsscrew clamp terminals
Operator Position Information2 positions
Light Block Supplywithout supply
Operator Profilemushroom Ø 41 mm
Operating Positionany position
Size30 mm
Environment
- Product Certifications
- CSA LR 25490 class 3211 03 || CE || NEMA || UL listed file E42259 CCN NKCR
Nema Degree Of ProtectionNEMA 1/2/3/3R/4/6/12/13
Specifications
- Operator Additional Information
- screw-on plastic
- Operator Profile
- green mushroom Ø 41 mm
- Product Or Component Type
- push-button
Range Of ProductHarmony 9001K
Type Of Operatorpush-pull
Device Short NameK
