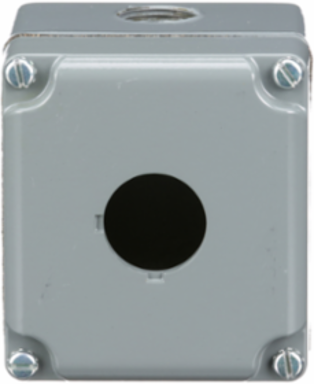

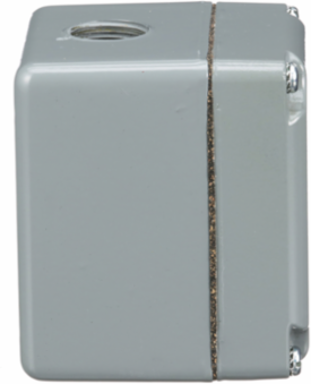

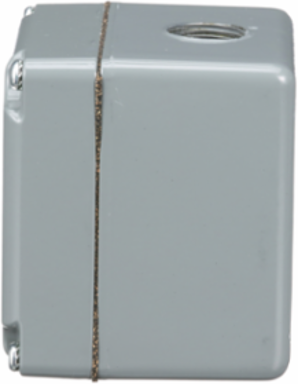

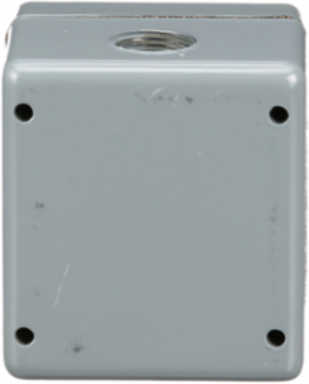

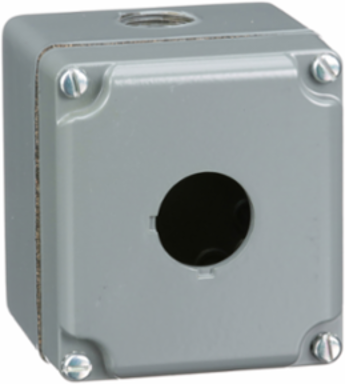

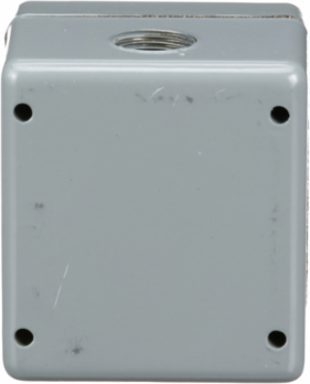

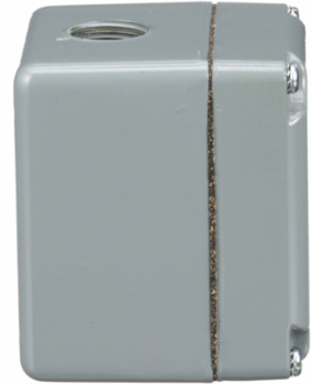

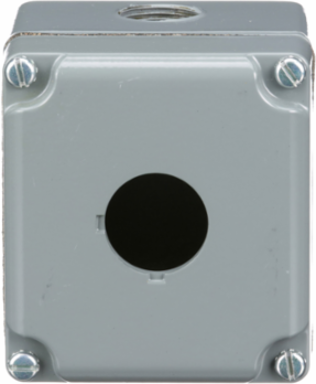

Square D 9001KY1 Harmony Empty Enclosure Control Station, Aluminium, 1 Cut-Out, 30mm
- MPN: 9001KY1
- UPC: 785901874423
- PPN: SCH-9001KY1
CAD
$170.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This Harmony 9001KY1 is an empty control station aluminium with 1 cut-out diameter 30. It is part of the range Harmony 9001 K diameter 30mm metal push buttons, switches, pilot lights.
Features
- This heavy-duty 9001KY series enclosure features a single, precision-machined 30mm knockout designed to house one Harmony 9001K or 9001SK control component. It provides industrial automation builders with a dedicated, isolated station for a critical local control device, such as a high-visibility emergency stop button, a remote start pushbutton, or a primary machine status pilot light.
- Fully certified to satisfy stringent NEMA 1, 3, 4, 12, and 13 environmental standards, this enclosure is completely dust-tight, oil-tight, and water-tight against high-pressure hose sprays. The precision-molded perimeter gasket and securely bolted faceplate seal out aggressive moisture, cooling lubricants, and cutting oil mists, protecting internal switch points from short circuits and corrosion.
- Designed with a pre-tapped 3/4-inch NPT conduit entry hub located on the bottom of the box, this enclosure ensures a highly reliable, leak-proof threaded pipe connection. The heavy-walled threaded casting eliminates the time and hassle of on-site field drilling, allowing field electricians to rapidly run rigid metal conduit directly into the housing while maintaining a flawless environmental seal.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Harmony 9001K || Harmony 9001SK
- Product Or Component Type
- empty enclosure
- Device Short Name
- 9001K
Cable Entry1 entry tapped for 3/4'' cable gland
Number Of Cut-Out1 cut-out
Complementary
- Product Destination
- for Ø 30 mm control and signalling units
- Net Weight
- 1.17 kg
Materialaluminium
Environment
- Ambient Air Temperature For Operation
- -25-70 °C
- Overvoltage Category
- II IEC 61140
- Protective Treatment
- TH
Ambient Air Temperature For Storage-40-70 °C
Nema Degree Of ProtectionNEMA 1 || NEMA 12 || NEMA 13 || NEMA 3 || NEMA 4 || NEMA 6
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP121027EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- Circularity Profile
- N/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
