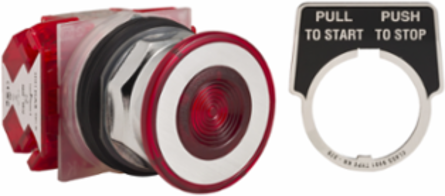

Schneider Electric 9001KR9RH8 Harmony Mushroom Push Button 41mm Red, 30mm, 2 Positions, 2NC
- MPN: 9001KR9RH8
- UPC: 785901034407
- PPN: SCH-9001KR9RH8
CAD
$220.83
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This mushroom shaped push-button is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy It is clearly distinguishable visually at a distance thanks to its prominent mushroom shape It is impact resistant, dust resistant, water resistant and vibration resistant, making it ideal for operation in harsh environments It is easily installed into a standard 30mm diameter panel cut-outs and connected with simple screw-clamp connections High performance International standards & certifications (Marine ABS certification, IP66, Type 1, 2, 3, 3R, 4, 6, 12 and 13)
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Mexico, United States
Physical Attributes
- Size
- 30 mm
Important Information Attributes
- Certificate Agency
- CE, UL listed file E42259 CCN NKCR, CSA LR 25490 class 3211 03, NEMA
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 7
- Without Single Use Plastic
- Yes
- Product Kit Identifier
- N
- Contact Operation
- standard
- Device Short Name
- K
- Light Source
- without
- Operator Additional Information
- screw-on plastic
- Operator Profile
- mushroom Ø 41 mm
- Product Or Component Type
- push-button
- Returnability
- No
- Type Of Operator
- push-pull
- Pep Code
- ENVPEP2503027EN
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
[Ie] Rated Operational Current10 A, AC-15, 10 A, DC-13
Local Publishable Date2026-01-12
Stocking FlagY
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2503027EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Bezel Materialmetal
Contacts Type And Composition2 NC
Light Block Supplywithout supply
Mounting Diameter30 mm
Operator Position Information2 positions
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Range Of ProductHarmony 9001K
Sustainable PackagingYes
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Cap/Operator Or Lens Colourred
Package Weight(Lbs)153.800 g
Warranty (In Months)18
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI2503027EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP2503027EN
Nema Degree Of ProtectionNEMA 3R/6/13
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2503027EN
General Attributes
- Product Or Component Type
- push-button
Range Of ProductHarmony 9001K
ETIM
- ETIM 8
- EC001028
ETIM 9EC001028
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Device Presentation
- complete product
