Square D 9001SKR9GH13 Push-button, Harmony 9001SK, plastic, mushroom 41mm, green, 30mm, 2 positions, push-pull, 1 C/O
Square D 9001SKR9GH13 Push-button, Harmony 9001SK, plastic, mushroom 41mm, green, 30mm, 2 positions, push-pull, 1 C/O
- MPN: 9001SKR9GH13
- UPC: 785901043027
- PPN: SCH-9001SKR9GH13
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$219.92/ EA
Description

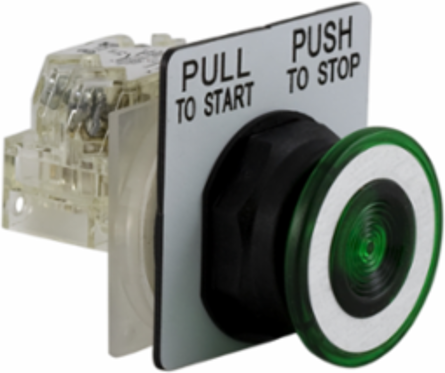

This Harmony 9001SK, modular green push button has 2 positions and operates with a stay-put mechanism. It has a double insulated plastic bezel, has a round shape and 40mm mushroom head and 1 x NO + 1 x NC contacts. This 40mm mushroom shaped push button head is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to a prominent mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.
Specifications
Specifications
- Operator Additional Information
- screw-on plastic
- Operator Profile
- green mushroom Ø 41 mm
- Product Or Component Type
- push-button
Range Of ProductHarmony 9001SK
Type Of Operatorspring return
Device Short Name9001SK
Complementary
- Contacts Type And Composition
- 1 C/O
- Contact Operation
- standard
- Mechanical Durability
- 5000000 cycles
- Operator Profile
- mushroom Ø 41 mm
- Cap/Operator Or Lens Colour
- green
- Device Presentation
- complete product
Bezel Materialplastic
Operator Position Information2 positions
Mounting Diameter30 mm
Type Of Operatorpush-pull
Size30 mm
Offer Sustainability
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP120816EN
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach Free Of SvhcYes
Environment
- Standards
- UL 508 || EN/IEC 60947-5-4 || JIS C 4520 || EN/IEC 60947-1 || CSA C22.2 No 14 || JIS C 852 || EN/IEC 60947-5-1
- Ip Degree Of Protection
- IP66
Nema Degree Of ProtectionNEMA 1/2/3/3R/4/4X/6/12/13
