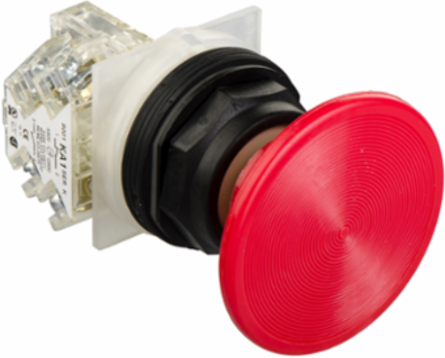

Harmony 9001SK Red Mushroom Push Button 57mm, 30mm, IP66
Square D

Square D 9001SKR25RH6 Harmony 9001SK Red Mushroom Push Button 57mm, 30mm, IP66

  • MPN: 9001SKR25RH6
  • UPC: 785901042556
  • PPN: SCH-9001SKR25RH6

CAD

$132.68

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

This Harmony 9001SK, modular red push button has 2 positions, operates with spring return mechanism. It has a double insulated plastic bezel, has a round shape and 57mm mushroom head and 1 x NC contact. This 57mm mushroom shaped push button head is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to a prominent mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.

Documentation & Downloads

Specifications

Key Specifications

Operator Additional Information
screw-on plastic with set screw
Operator Profile
red mushroom Ø 57 mm
Product Or Component Type
push-button
Range Of ProductHarmony 9001SK
Type Of Operatorspring return
Device Short Name9001SK

Complementary

Contacts Type And Composition
1 NC
Contact Operation
standard
Mounting Diameter
30 mm
Type Of Operator
spring return
Size
30 mm
Bezel Materialplastic
Mechanical Durability5000000 cycles
Operator Profilemushroom Ø 57 mm
Cap/Operator Or Lens Colourred
Device Presentationcomplete product

Environment

Standards
EN/IEC 60947-5-4 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || JIS C 4520 || EN/IEC 60947-1 || JIS C 852 || UL 508
Ip Degree Of Protection
IP66
Nema Degree Of ProtectionNEMA 1/2/3/3R/4/4X/6/12/13

Offer Sustainability

China Rohs Regulation
X
Rohs Exemption Information
Yes
Environmental Disclosure
EnvPEP120817EN
Toxic Heavy Metal Free
Yes
Reach Regulation
Free of Substances of Very High Concern above the threshold
Weee
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach Free Of SvhcYes
