Schneider Electric

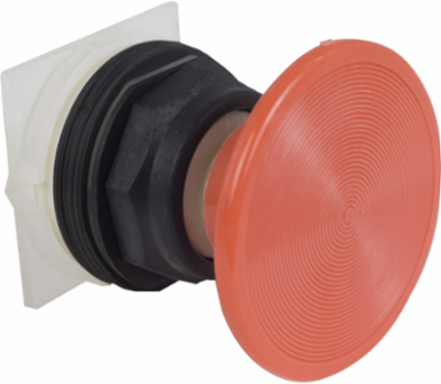

Schneider Electric 9001SKR25R Push-button head, Harmony 9001SK, plastic, mushroom 57mm, red, 30mm, spring return

Push-button head, Harmony 9001SK, plastic, mushroom 57mm, red, 30mm, spring return
  • MPN: 9001SKR25R
  • UPC: 785901042532
  • PPN: SCH-9001SKR25R

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$104.51/ EA

Description

This Harmony 9001SK, modular red push button has 2 positions, operates with spring return mechanism. It has a double insulated plastic bezel, has a round shape with 57mm mushroom head. This 57mm mushroom shaped push button head is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to a prominent mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.

Specifications

Specifications

Range Of Product
Harmony 9001SK
Device Short Name
9001SK
Product Or Component Typehead for push-button

Offer Sustainability

China Rohs Regulation
X
Rohs Exemption Information
Yes
Environmental Disclosure
EnvPEP120817EN
Toxic Heavy Metal Free
Yes
Reach Regulation
Free of Substances of Very High Concern above the threshold
Weee
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach Free Of SvhcYes

Complementary

Product Certifications
CSA LR24590 class 3211 03 || CE || UL listed file E42259 CCN NKCR
Light Source
without
Bezel Material
plastic
Light Block Supply
without supply
Operator Profile
mushroom Ø 57 mm
Shape Of Signaling Unit Head
octagonal
Size
30 mm
Contacts Type And Compositionwithout contact block
Operator Additional Informationscrew-on plastic with set screw
Nema Degree Of ProtectionNEMA 1/2/3/3R/4/4X/6/12/13
Mounting Diameter30 mm
Type Of Operatorspring return
Cap/Operator Or Lens Colourred
Ip Degree Of ProtectionIP64
