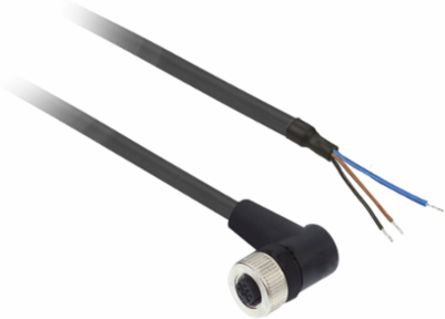

Telemecanique Sensors XZCP1340L10 Pre wired connectors XZ, elbowed female, M12, 3 pins, cable PUR 10 m
Telemecanique Sensors XZCP1340L10 Pre wired connectors XZ, elbowed female, M12, 3 pins, cable PUR 10 m
- MPN: XZCP1340L10
- PPN: TES-XZCP1340L10
- UNSPSC: 39121528
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$106.63/ EA
Description
This product is part of the XZ range, an offer of cordsets and connectors. This cable is made up of 3 wires and has a 5 pins M12 elbowed female connector with a metal collar. It is designed in polyurethane for severe industrial environments. Its rated operational voltage is 10V to 30V/DC and its nominal current is 4A. Its contact resistance is 5000µOhm and its minimum insulating resistance is 1GΩ. It is dustproof, resistant to water jets (IP65), can be temporarily immersed in water (IP67), and withstands high pressure and steam cleaning (IP69K). This cable has a length of 10m and a diameter of 5.2mm. It is made up of 3 wires, each section of which is 0.34 mm². It is intended for industrial environments thanks to its excellent resistance to extreme temperatures (-5°C to +90°C in operation if the cable remains static). This cable complies with cULus certification. It is compatible with a 5 pins M12 male connector. XZ range includes a wide range of cordsets, connectors, and connection boxes designed for a simple connection process and a quick reference identification.
Specifications
Environment
- Product Certifications
- cULus
- Ambient Air Temperature For Storage
- -40-80 °C
Ambient Air Temperature For Operation-40-80 °C static || -5-80 °C flexing
Ip Degree Of ProtectionIP69K || IP67 || IP65
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1308015
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Circularity Profile
- ENVEOLI1308015EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Collar Material
- metal
- Wire Insulation Material
- PUR
- Cable Length
- 10 m
- Cable Outer Diameter
- 5.2 mm
- Cable Connector Fixing
- screw-on
- Cable Composition
- 3 x 0.34 mm²
Electrical Connectionelbowed female connector M12, 3 pins
[Ue] Rated Operational Voltage10...30 V DC
Status Led2 PNP LEDs
Minimum Insulating Resistance1 GΩ
Line Rated Current4 A
Contact Resistance5000 µOhm
Specifications
- Range Of Product
- Telemecanique Cabling components
- Series Name
- general purpose
Accessory / Separate Part Categorycabling accessory
Accessory / Separate Part Typepre-wired connectors
