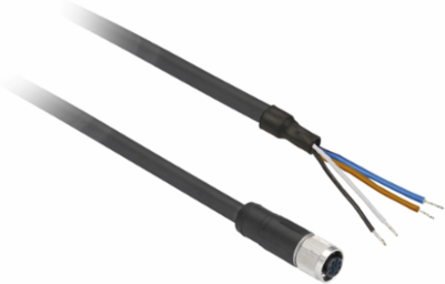

Telemecanique Sensors XZCP1141L5 Pre-wired connector XZ, straight female, M12, 4-pin, PUR cable, 5 m (XZCP1141L5)
- MPN: XZCP1141L5
- PPN: TES-XZCP1141L5
CAD
$32.33
/ EA
Available to Order from Manufacturer
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Pre-wired connector XZ, straight female, M12, 4-pin, PUR cable, 5 m (XZCP1141L5)
Documentation & Downloads
Specifications
Additional
| Rated Operational Voltage | 250 V AC, 300 V DC |
|---|---|
| Contact Resistance | 5000 µOhm |
| Operating Temperature Range | -40C to 80C static, -5C to 80C flexing |
| Cable Outer Diameter | 5.2 mm (0.20 in) |
| Collar Material | Metal |
| Wire Insulation Material | Polyurethane (PUR) |
| Certification | cULus |
| Weight | 0.19 kg (0.42 lb) |
| Nominal Current | 4 A |
|---|---|
| Minimum Insulating Resistance | 1 G |
| Cable Length | 5 m (16.40 ft) |
| Connector Type | Female M12, 4-pin, straight |
| Cable Composition | 4 x 0.34 mm2 wires |
| IP Degree of Protection | IP65, IP67, IP69K |
| Color | Black |
