Weidmuller 0337000000 Q 2 SAK2.5
Weidmuller 0337000000 Q 2 SAK2.5
- MPN: 0337000000
- PPN: WDM-0337000000
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1.73/ EA
Description

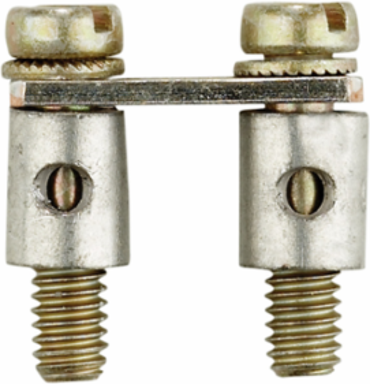

SAK Series, Cross-connector, for cross-connection link, Number of poles: 2
Specifications
Approvals
- Approvals
- EAC
ROHSConform
Dimensions And Weights
- Width
- 11.5 mm
- Height
- 6 mm
- Depth
- 20.5 mm
- Net weight
- 3.44 g
Width (inches)0.453 inch
Height (inches)0.236 inch
Depth (inches)0.807 inch
Dimensions
- Pitch in mm (P)
- 6 mm
Additional Technical Data
- Explosion-tested version
- No
- Type of fixing
- when screwed in
Installation adviceDirect mounting
Material Data
- Material
- CuSn
Colourgrey
Classifications
- ETIM 6.0
- EC000489
- eClass 9.0
- 27-14-11-40
- eClass 10.0
- 27-14-11-40
ETIM 7.0EC000489
eClass 9.127-14-11-40
UNSPSC30-21-18-01
System Specifications
- Version
- for cross-connection link
Temperatures
- Storage temperature, max.
- 40 °C
- Storage temperature
- 10 °C...40 °C
Storage temperature, min.10 °C
Rating Data
- Rated current
- 24 A
