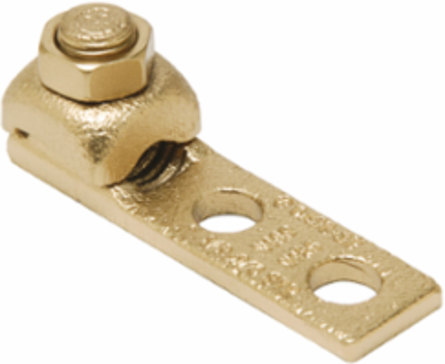

Burndy QB262N Cu Alloy Side Entrance Terminal, 1/0 - 2/0 Str, 2-Nema pad Holes
- MPN: QB262N
- UPC: 781810480045
- PPN: BUR-27009470
CAD
$170.57
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Cu Alloy Side Entrance Terminal, 1/0 - 2/0 Str, 2-Nema pad Holes
Specifications
Dimensions
| Dimension - B Length fraction | 47/50 in |
|---|---|
| Dimension - D inch | 3.13 in |
| Dimension - Height inch | 1.13 in |
| Dimension - Hole Size mm | 14 mm |
| Dimension - Length Overall inch | 3.94 in |
| Dimension - Pad Width inch | 0.81 in |
| Weight | 0.31 lb |
| Dimension - B Length inch | 0.94 in |
|---|---|
| Dimension - Height fraction | 1-1/8 |
| Dimension - Hole Size inch | 0.56 in |
| Dimension - L Length Overall mm | 100 mm |
| Dimension - N inch | 0.63 in |
| Dimension - Width mm | 21 mm |
General
| Connector Type | Terminal |
|---|---|
| Physical Attribute - Number of Holes | 2 |
| Physical Attribute - Screw Type | Hexagonal Bolt |
| Plating Type | Unplated |
| Type | Bolted Lugs & Terminals |
| Material | Copper |
|---|---|
| Physical Attribute - Number of Screws | 1 |
| Plated | N |
| Trade Name | QIKLUG™ |
| UPC | 781810480045 |
Certifications and Compliance
| Certification - CSA Approved | No |
|---|---|
| Certification - cULus | No |
| Standards - RoHS Compliance Status | EX |
| Certification - UL Recognized | No |
|---|---|
| Industry Standard(s) | UL468A-468B |
| UL Listed | No |
Conductor Related
| Conductor - Copper Str Size | 1/0 ;2/0 AWG |
|---|---|
| Conductor Type | CU C Str-Size |
| Conductor - Copper Str Size Range | 1/0 -2/0 AWG |
|---|
