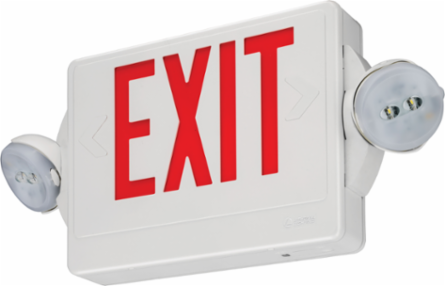

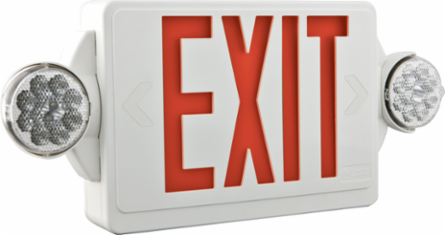

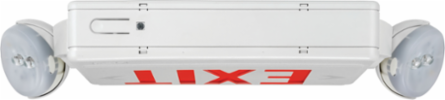

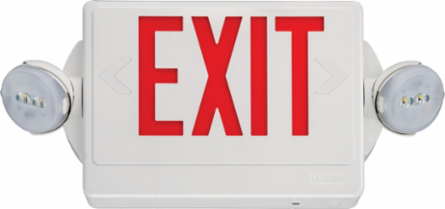

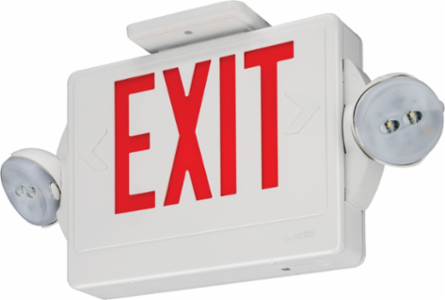

Lithonia Lighting LHQM LED R M6 LITH LHQM LED R M6 Quantum thermopl

LITH LHQM LED R M6 Quantum thermopl
LITH LHQM LED R M6 Quantum thermopl
LITH LHQM LED R M6 Quantum thermopl
LITH LHQM LED R M6 Quantum thermopl
LITH LHQM LED R M6 Quantum thermopl
LITH LHQM LED R M6 Quantum thermopl
LITH LHQM LED R M6 Quantum thermopl
LITH LHQM LED R M6 Quantum thermopl
LITH LHQM LED R M6 Quantum thermopl
LITH LHQM LED R M6 Quantum thermopl
LITH LHQM LED R M6 Quantum thermopl
LITH LHQM LED R M6 Quantum thermopl
  • MPN: LHQM LED R M6
  • UPC: 745976254438
  • PPN: LTH-LHQM LED R M6
  • UNSPSC: 39111707

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$148.03/ EA

Description

Design Select

Features

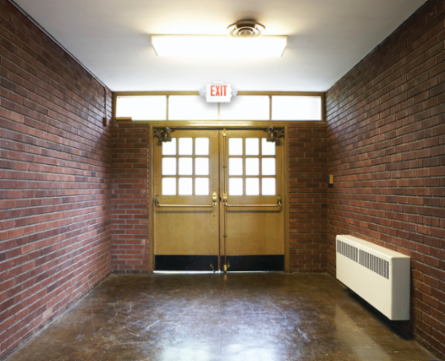

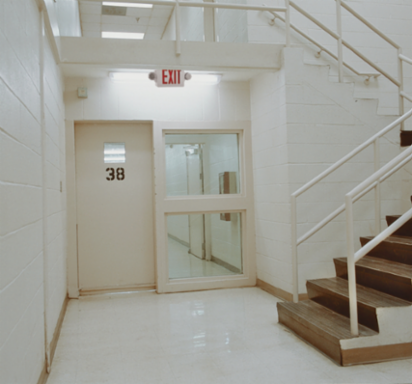

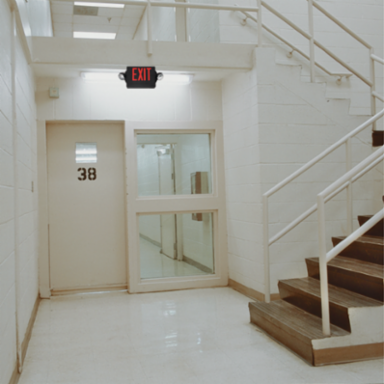

  • APPLICATIONS: Suitable for commercial indoor applications requiring both exit sign and unit equipment, Ideal for lower mounting heights and is great for above-the-door applications and other tight fits

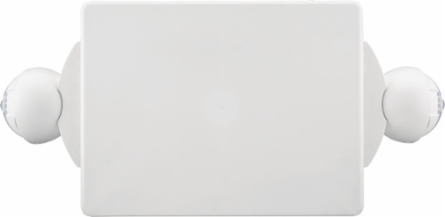

  • INSTALLATION: Easily replaces existing emergency combination units and has top, back or end mounting capability (canopy included)
  • DIMMING: Not applicable
  • RATINGS: UL Listed, meets all applicable requirements for UL 924, NFPA 101 (current Life Safety Code), NFPA 70 (NEC) and OSHA, UL Damp Location 50 to 104 degrees F (10-40C) listed
  • VOLTAGE: Functions between 120 or 277 volts (60 Hz) with input wattage of 3 watts
  • HOURS OF LIFE: The typical life of the LED lamp is 10 years using one 1.5 Watt LED per lamp head
  • DESIGN: Engineering-grade thermoplastic housing is impact-resistant, scratch-resistant and corrosion proof, UL94V-0 flame rating, UV-stable resin resists discoloration from natural and man-made light sources
  • BATTERY: Emergency combo provided with test switch, status indicator and rechargeable battery with maintenance-free 9.6V nickel-cadmium battery provides 90 minutes of emergency power
  • WARRANTY: Buy with confidence with a 5-year limited warranty

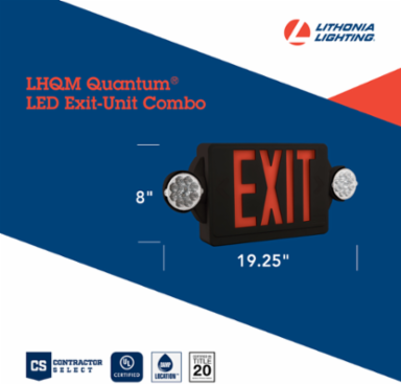

  • DIMENSIONS: Length: 19.25 in. x Height 8.0 in.

Specifications

Specifications

Country of Origin
Vietnam
Color
White
Environmental Conditions
Indoor, Outdoor
Wattage
3 W
Background Color
White
Fixture Type
Emergency Exit Unit (aka Combo)
Letter Color
Red
Lumens
160 LM LM
Voltage Rating120, 277 V
Lamp TypeLED - Static
MountingSurface
MaterialThermoplastic
Battery Runtime90 min
Housing ColorWhite
TypeEmergency Exit Sign
