Documentation & Downloads

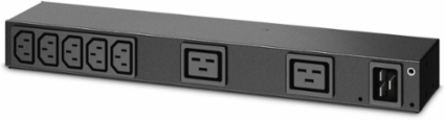

APC AP6120A Basic Rack PDU, 1U, 100-240V/20A, (7) C13, (2) C19, 3.66 Inch Depth
- MPN: AP6120A
- UPC: 731304327851
- PPN: APC-AP6120A
CAD
$222.39
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Basic Rack PDU, 1U, 100-240V/20A, (7) C13, (2) C19, 3.66 Inch Depth
Documentation & Downloads
Specifications
Additional
- Input Voltage
- 100 V, 120 V, 200 V, 208 V, 230 V, 240 V
- Input Frequency
- 50/60 Hz
- Line Rated Current
- 16 A
- Width
- 15.28 in (38.8 cm)
- Height
- 1.73 in (4.4 cm)
- Rack Units
- 1U
- Mounting Position
- Horizontal
- Outlet Type and Quantity
- 7 IEC 60320 C13, 2 IEC 60320 C19
- RoHS
- Compliant with Exemptions
- Reach
- Free of Substances of Very High Concern (SVHC)
Output Voltage100 V, 120 V, 200 V, 208 V, 230 V, 240 V
Input Current20 A
Load Capacity2300 VA
Depth3.66 in (9.3 cm)
Weight3.44 lb (1.56 kg)
Mounting LocationFront, Rear
Input Plug TypeIEC 60320 C20
Mercury FreeYes
ComplianceUL Listed, cUL Listed, CE, EAC, IRAM, PSE, VDE
ApprovalscUL Listed, CE, EAC, IRAM, PSE, UL Listed, VDE
