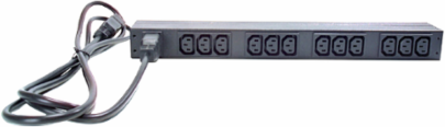

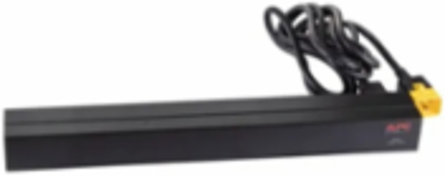

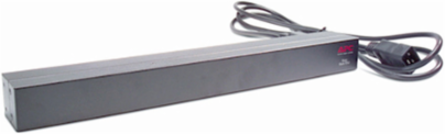

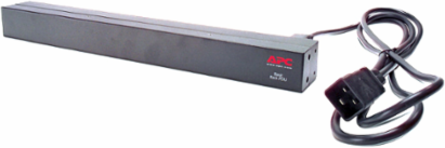

APC AP9565 NetShelter Basic Rack PDU, 1U, 230V, 16A, 12 x C13 Outlets, 8.2 ft Cord

MPN: AP9565
UPC: 731304213055
PPN: APC-AP9565

$356.72

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Reliable rack power distribution designed to increase manageability and efficiency in the data center The output and input connections are (12)C13 Real-time remote monitoring of connected loads User-defined alarms warn IT and data center managers of potential circuit overloads to prevent accidental power loss to critical equipment.

Features

Ideal for staffed sites and non-critical applications that need resilient single phase power distribution
Sustainable performance backed by product environmental profile
Frees up Uspace, installs easily with (12) C13 outlets for IT gear
Protect against overloads and enables a quick recovery
Durable design backed by a 2 year warranty

Documentation & Downloads

Specifications

Additional

Output Voltage	208 V, 230 V
Input Current	16 A
Phase	1 phase
Width	17.60 in (44.7 cm)
Height	1.73 in (4.4 cm)
Form Factor	1U
Mounting Position	front, rear, horizontal
Outlet Type	IEC 60320 C13
Product Certifications	cUL Listed, CE, Queensland Australia, UL Listed, VDE
Rohs	Compliant
LeadFree	Yes
California Proposition 65	Warning: Contains Diisononyl phthalate (DINP), a carcinogen

Input Voltage	200 V, 208 V, 230 V
Power Capacity	3.7 kW 230V 16A, 3.3 kW 208V 16A
Load Capacity	3680 VA
Depth	2.24 in (5.7 cm)
Weight	4.52 lb (2.05 kg)
Cord Length	8.2 ft (2.5 m)
Input Connection Type	IEC 60320 C20
Number of Outlets	12
Standards	UL 60950
Reach	Free of Substances of Very High Concern above threshold
ReachFreeOfSVHC	Yes
WEEE	EU waste disposal compliant
