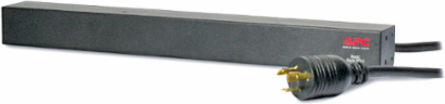

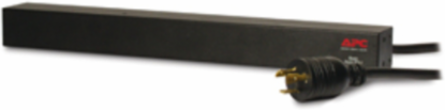

APC AP9566 Rack PDU 1U 16A 208V (12)C13, 17.60 Inch Width, 2.24 Inch Depth, 5.51 lb
- MPN: AP9566
- UPC: 731304213048
- PPN: APC-AP9566
CAD
$356.72
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
It is a basic rack PDU with a 1U horizontal mounting design. It supports a maximum input current of 20A and operates at 208V. The PDU features 12 IEC 60320 C13 outlets, providing ample connections for IT equipment. It includes a 12-foot power cord with a NEMA L6-20P plug. The unit is designed for reliable power distribution and includes an installation guide and rack mounting brackets.
Features
- Features 12 C13 outlets for extensive power distribution
- Horizontal mounting to fit various rack configurations
- Supports up to 16A, 208V power distribution
- Includes toolless mounting kit for quick setup
Documentation & Downloads
Specifications
Additional
| Amperage | 16 A |
|---|---|
| Output Voltage | 208 V |
| Input Frequency | 50/60 Hz |
| Width | 17.60 in (44.7 cm) |
| Height | 1.73 in (4.4 cm) |
| Cord Length | 12 ft (3.66 m) |
| Mounting Position | front, rear, horizontal |
| Compliance | cUL Listed, UL Listed |
| RoHS | Compliant |
| Prop 65 Compliant | Yes |
| Input Voltage | 200 V, 208 V, 230 V |
|---|---|
| Load Capacity | 3328 VA |
| Rack Units | 1U |
| Depth | 2.24 in (5.7 cm) |
| Weight | 5.51 lb (2.5 kg) |
| Input Connection Type | NEMA L6-20P |
| PDU Type | Basic |
| Standards | UL 60950 |
| Lead Free | Yes |
