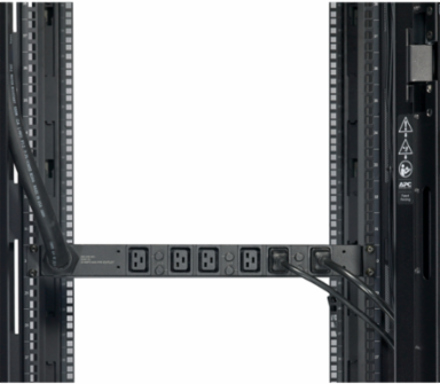

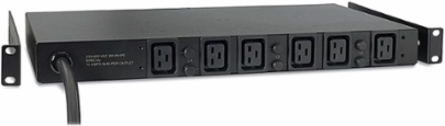

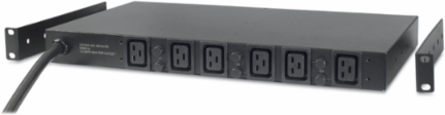

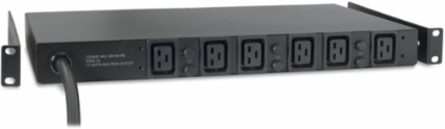

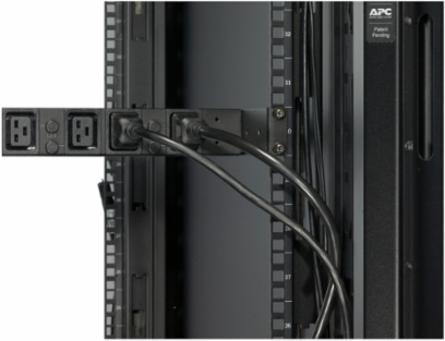

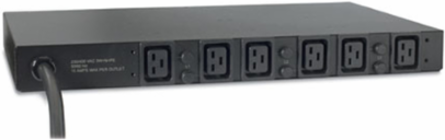

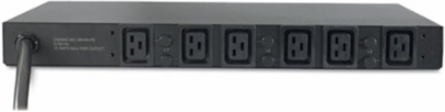

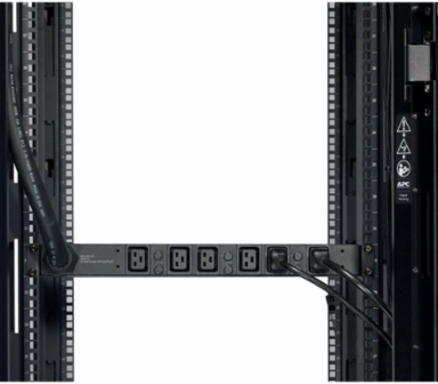

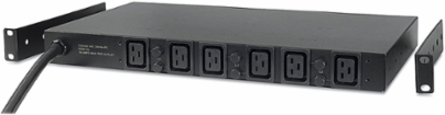

APC AP7516 Rack PDU 1U 14.4kW 208V (6) C19, 17.20 Inch Width, 10 Inch Depth, 17.59 lb Weight

MPN: AP7516
UPC: 731304232674
PPN: APC-AP7516

$1567.16

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

It is a basic rack PDU with a 1U horizontal mounting design. It supports a maximum input current of 50A and operates at 200-208V. The PDU features 6 IEC 60320 C19 outlets and is equipped with a CS8365 input connector. It has an 8-foot (2.44 meters) power cord for flexible installation. The unit is designed to fit in a 1U rack space. It is compliant with RoHS and REACh regulations, ensuring it meets environmental standards.

Features

Enables a quick recovery from overload events.
Features 6 C19 outlets for comprehensive power distribution
1 U design for efficient use of rack space
Supports up to 50A, 208V power distribution
Includes toolless mounting kit for quick setup

Documentation & Downloads

Specifications

Additional

Voltage	208 V 3 phase
Line Rated Current	40 A
Power Capacity	14.4 kW
Input Frequency	50/60 Hz
Width	17.20 in (43.7 cm)
Height	1.73 in (4.4 cm)
Cord Length	8 ft (2.44 m)
Outlet Quantity	6
Material	Lead Free
WEEE Compliance	EU Waste Collection Required
Approvals	cUL Listed, METI Denan, UL Listed
Warranty	24 months

Nominal Output Voltage	200 V, 208 V
Input Current Limits	50 A
Load Capacity	14400 VA
Rack Height	1U
Depth	10.00 in (25.4 cm)
Weight	17.59 lb (7.98 kg)
Mounting Position	front, rear, horizontal
Outlet Type	IEC 60320 C19
RoHS Compliance	Compliant
Reach Compliance	Free of SVHC above threshold
Customs Number	8537109170
