APC AP9563 Rack PDU 1U 20A 120V NEMA 5-20P 12 ft Cord
- MPN: AP9563
- UPC: 731304203889
- PPN: APC-AP9563
CAD
$356.72
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

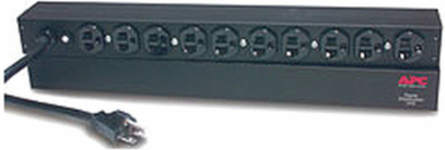

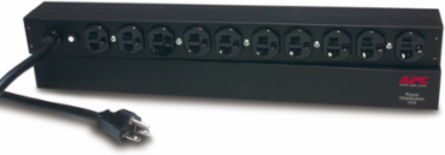

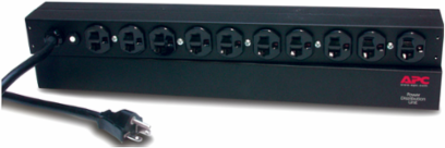

It is a basic rack PDU with a 1U horizontal mounting design. It supports a maximum input current of 20A and operates at 120V. The PDU features 10 NEMA 5-20R outlets, providing ample connections for IT equipment. It includes a 12-foot power cord with a NEMA 5-20P plug. The unit is designed for reliable power distribution and includes rack mounting brackets and an installation guide.
Features
- Features 10 NEMA 5-20R outlets for comprehensive power distribution
- Horizontal mounting to fit various rack configurations
- Supports up to 20A, 120V power distribution
- Includes toolless mounting kit for quick setup
Documentation & Downloads
Specifications
Additional
| Amperage | 20A |
|---|---|
| Nominal Output Voltage | 120 V |
| Input Frequency | 50/60 Hz |
| Height | 1.73 in (4.4 cm) |
| Depth | 2.24 in (5.7 cm) |
| Input Connection Type | NEMA 5-20P |
| Mount Position | front, rear, horizontal |
| RoHS | Compliant |
| Lead Free | Yes |
| Input Voltage | 100 V, 120 V |
|---|---|
| Load Capacity | 1920 VA |
| Rack Height | 1U |
| Width | 17.60 in (44.7 cm) |
| Weight | 5.51 lb (2.5 kg) |
| Cord Length | 12 ft (3.66 m) |
| Approvals | cUL Listed, UL Listed |
| Reach | Free of Substances of Very High Concern above threshold |
