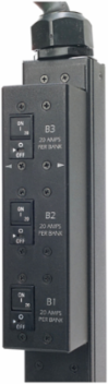

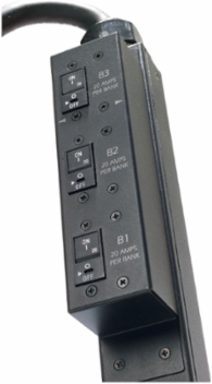

APC AP7598 Rack PDU 12.5kW 208V Zero U Vertical Mount 10 ft Cord

MPN: AP7598
UPC: 731304226864
PPN: APC-AP7598

$1634.33

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

It is a basic rack PDU with a Zero U vertical mounting design. It supports a maximum input current of 35A and operates at 208V. The PDU features 30 IEC 60320 C13 outlets and 6 IEC 60320 C19 outlets, providing ample connections for IT equipment. It includes a 10-foot power cord with a CS8365 plug. The unit is designed for reliable power distribution and includes cord retention brackets, an installation guide, and a toolless mounting kit.

Features

Enables a quick recovery from overload events.
Server cases do not require additional tools to mount into NetShelter Enclosures, which allows the users to quickly and easily mount units in the rear of the enclosure.
Easily mounts vertically in racks or enclosures and occupies zero U of valuable rack space, which allows more equipment in the rack. Units that mount vertically are optimized to fit in a NetShelter enclosures.
Supports up to 12.5 kW, 208V power distribution
Equipped with 30 C13 and 6 C19 outlets for extensive power distribution
Vertical mounting to save valuable rack space
Easy installation with toolless mounting capabilities

Documentation & Downloads

Specifications

Additional

Input Voltage	208 V 3 phase
Load Capacity	12500 VA
Input Frequency	50/60 Hz
Height	70 in (177.8 cm)
Depth	3.5 in (8.9 cm)
Mounting Type	side, vertical
RoHS Compliance	Compliant

Output Voltage	208 V
Input Current Limit	35 A
Cord Length	10 ft (3.05 m)
Width	2.2 in (5.6 cm)
Weight	19.38 lb (8.79 kg)
Rack Units	0U
Approvals	UL Listed, cUL Listed
