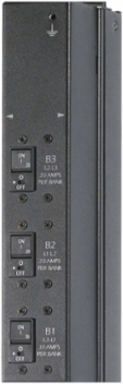

APC AP7599 Rack Power Distribution Unit, 14.4kW, 208V, 0U, 10 ft Cord Length
- MPN: AP7599
- UPC: 731304240761
- PPN: APC-AP7599
CAD
$2447.76
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
It is a basic rack PDU with a Zero U vertical mounting design. It supports a maximum input current of 50A and operates at 208V. The PDU features 24 IEC 60320 C13, 4 IEC 60320 C19, and 2 NEMA L6-30R outlets, providing flexibility for connecting various IT equipment. It includes a 10-foot power cord with a CS8365 plug. The unit is designed for reliable power distribution and includes cord retention brackets, an installation guide, and a toolless mounting kit.
Features
- Enables a quick recovery from overload events.
- Server cases do not require additional tools to mount into NetShelter Enclosures, which allows the users to quickly and easily mount units in the rear of the enclosure.

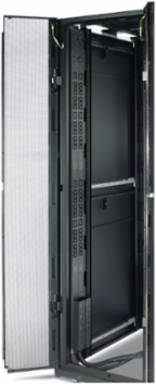

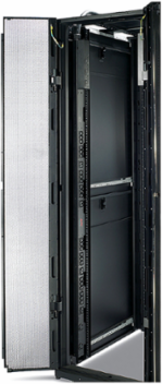

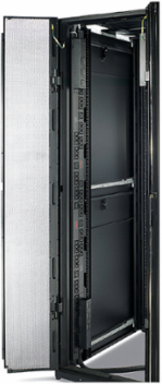

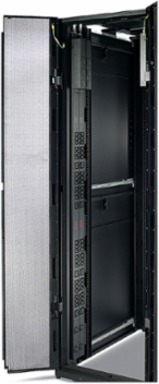

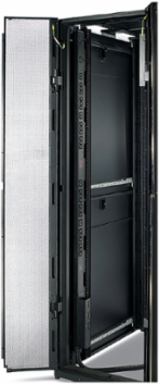

- Easily mounts vertically in racks or enclosures and occupies zero U of valuable rack space, which allows more equipment in the rack. Units that mount vertically are optimized to fit in a NetShelter enclosures.
- Suitable for high-density power distribution in data centers and network environments
- The various outlets provides flexibility to connect a variety of IT equipment
- The vertical Zero U design optimizes the use of space in the rack
- Easy to install and integrate into existing rack setups
Documentation & Downloads
Specifications
Additional
| Input Voltage | 208 V 3 phase |
|---|---|
| Line Rated Current | 40 A |
| Power Capacity | 14.4 kW |
| Input Frequency | 50/60 Hz |
| Width | 2.20 in (5.6 cm) |
| Net Weight | 21.74 lb (9.86 kg) |
| Mounting Position | side, vertical |
| Number of Input Connectors | 1 CS8365 |
| Lead Free | Yes |
| Reach | Free of Substances of Very High Concern above threshold |
| Approvals | cUL Listed, CSA, METI Denan, UL Listed |
| Operating Temperature Range | 23 to 113 F (-5 to 45 C) |
| Operating Altitude | 0 to 10000 ft |
| Nominal Output Voltage | 208 V |
|---|---|
| Input Current Limit | 50 A |
| Load Capacity | 14400 VA |
| Height | 70 in (177.8 cm) |
| Depth | 3.74 in (9.5 cm) |
| Rack Height | 0U |
| Cord Length | 10 ft (3.05 m) |
| Outlet Type and Quantity | 2 NEMA L6-30R, 24 IEC 60320 C13, 4 IEC 60320 C19 |
| RoHS | Compliant |
| Reach Free Of SVHC | Yes |
| Standards | UL 60950 |
| Storage Temperature Range | -13 to 149 F (-25 to 65 C) |
| Storage Altitude | 0 to 50000 ft |
