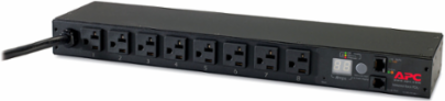

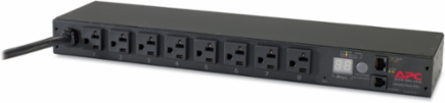

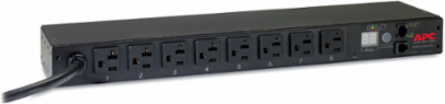

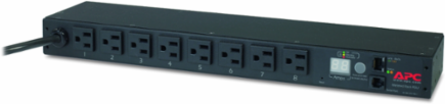

APC AP7801B Rack PDU Metered 1U 20A 120V (8) 5-20 12 ft Cord, 3.81 lb, Energy Efficient
- MPN: AP7801B
- UPC: 731304331469
- PPN: APC-AP7801B
CAD
$1119.40
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
It is a metered rack PDU designed for 1U horizontal mounting. It supports a maximum current of 20A and operates at 120V. The PDU features 8 NEMA 5-20R outlets and a 12-foot power cord with a NEMA L5-20P plug. It has a load capacity of 1920 VA and includes a cord retention bracket, installation guide, and rack mounting brackets.
Features
- Provides 8 NEMA 5-20R outlets for comprehensive power distribution
- Horizontal mounting to fit various rack configurations, conserving space
- Supports up to 20A, 120V power distribution, ensuring reliable power delivery
- Includes a cord retention bracket and toolless mounting kit for quick setup
Documentation & Downloads
Specifications
Additional
| Amperage | 20 A |
|---|---|
| Load Capacity | 1920 VA |
| Cord Length | 12 ft (3.66 m) |
| Height | 1.73 in (4.4 cm) |
| Depth | 4.02 in (10.2 cm) |
| Outlet Quantity | 8 |
| Mounting Location | Front, Rear |
| Material | Mercury Free, Lead Free |
| Compliance | cUL Listed, CSA, UL Listed |
| Country of Origin | Philippines |
| Voltage | 100 V, 120 V |
|---|---|
| Rack Units | 1U |
| Weight | 3.81 lb (1.73 kg) |
| Width | 17.48 in (44.4 cm) |
| Input Plug Type | NEMA L5-20P |
| Outlet Type | NEMA 5-20R |
| Mounting Position | Horizontal |
| Rohs | Compliant with Exemptions |
| Standards | FCC Part 15 class A, ICES-003, UL 60950 |
