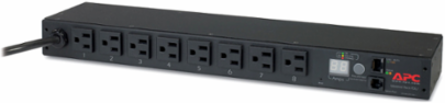

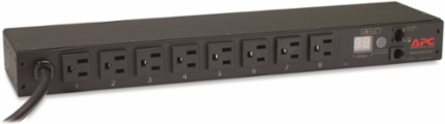

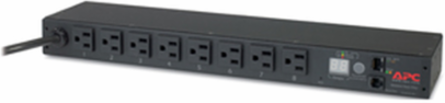

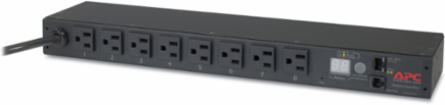

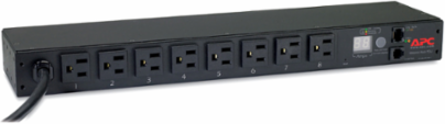

APC AP7800B Rack PDU Metered 1U 15A 120V (8) 5-15, 17.48 Inch Width, 4.02 Inch Depth, 12 ft Cord
- MPN: AP7800B
- UPC: 731304331452
- PPN: APC-AP7800B
CAD
$967.16
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Rack PDU Metered 1U 15A 120V (8) 5-15, 17.48 Inch Width, 4.02 Inch Depth, 12 ft Cord
Documentation & Downloads
Specifications
Additional
- Input Voltage
- 100 V, 120 V
- Amperage
- 15A
- Rack Height
- 1U
- Weight
- 3.81 lb (1.73 kg)
- Mounting Location
- Front, Rear, Horizontal
- Outlet Type and Quantity
- 8 NEMA 5-15R
- Storage Temperature Range
- -13 to 149 °F (-25 to 65 °C)
- Storage Altitude
- 0 to 50000 ft (0 to 15240 m)
- Relative Humidity Storage
- 5 to 95 %
- Standards
- FCC Part 15 class A, ICES-003, UL 60950
- Reach
- Free of SVHC above threshold
- Country of Origin
- Philippines
Output Voltage120 V
Load Capacity1440 VA
Dimensions (W x H x D)17.48 x 1.73 x 4.02 in (44.4 x 4.4 x 10.2 cm)
Cord Length12 ft (3.66 m)
Input Connection TypeNEMA 5-15P
Operating Temperature Range23 to 113 °F (-5 to 45 °C)
Operating Altitude0 to 10000 ft
Relative Humidity Operating5 to 95 %
ApprovalscUL Listed, CSA, METI Denan, UL Listed, VCCI
RoHSCompliant with Exemptions
Mercury FreeYes
