APC AP7821B Rack PDU 1U Metered 16A 208/230V (8) C13, 17.48 Inch Width, 4.02 Inch Depth

MPN: AP7821B
UPC: 731304331513
PPN: APC-AP7821B

$1056.72

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

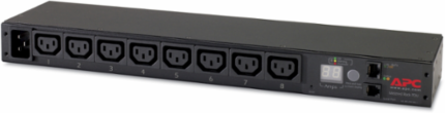

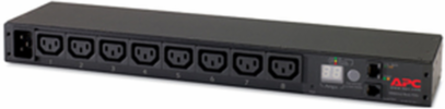

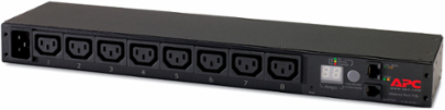

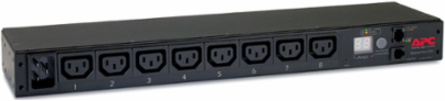

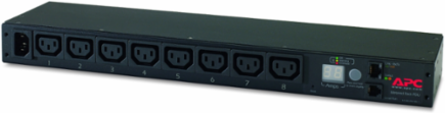

It is a metered rack PDU designed for 1U horizontal mounting. It supports a maximum current of 16A and operates at 208-230V. The PDU features 8 IEC 60320 C13 outlets and an 8.2-foot power cord with an IEC 60320 C20 plug. It has a load capacity of 3300 VA and includes a cord retention bracket, installation guide, and rack mounting brackets.

Features

Provides 8 IEC 60320 C13 outlets for comprehensive power distribution
Horizontal mounting to fit various rack configurations, conserving space
Supports up to 16A, 208V to 230V power distribution, ensuring reliable power delivery
Includes a cord retention bracket and toolless mounting kit for quick setup

Documentation & Downloads

Specifications

Additional

Input Voltage	200 V, 208 V, 230 V
Input Current Limit	20A
Input Frequency	50/60 Hz
Height	1.73 in (4.4 cm)
Depth	4.02 in (10.2 cm)
Cord Length	8.2 ft (2.5 m)
Outlet Type and Quantity	8 IEC 60320 C13
Compliance	cUL Listed, CE, CSA, GOST, UL Listed, VCCI, VDE, C-tick
Mercury Free	Yes
Reach	Free of SVHC above threshold
Country of Origin	India

Output Voltage	208 V, 230 V
Load Capacity	3300 VA
Rack Height	1U
Width	17.48 in (44.4 cm)
Weight	3.84 lb (1.74 kg)
Input Connection Type	IEC 60320 C20
Mount Position	front, rear, horizontal
Standards	FCC Part 15 class A, ICES-003, UL 60950
RoHS	Compliant with Exemptions
California Proposition 65	WARNING: contains Diisononyl phthalate (DINP), known to cause cancer
