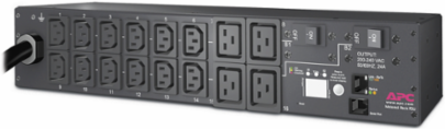

APC AP7811B NetShelter Rack PDU 2U, 5.0kW, 208V, 30A, (12) C13, (4) C19 Outlets, 7.41 lb
- MPN: AP7811B
- UPC: 731304331490
- PPN: APC-AP7811B
CAD
$1701.49
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
APC Metered Rack PDUs distribute reliable rack power distribution via a single input with multiple output receptacles AP7811B offers real-time remote monitoring and user-defined alarms which helps prevent potential circuit overloads that can cause accidental power loss to critical equipment Easily access, configure, and monitor this metered PDU from remote locations A network management interface provides standards-based management via Web, SNMP, and Command Line Interface This Metered PDU from APC provides (12) IEC C13 and (4) IEC C19 outlets to supply power to rack equipment Active current measurements (amps), User-customizable alarms and warnings and Embedded log memory to record/review/report historic data to local user An environmental monitoring port for external temperature/humidity monitoring is available (sensor sold separately model AP9335T or AP9335TH) Easy to mount this Horizontal PDU in racks or enclosures and occupies 2U of rack Space Packaging Includes PDU, Installation guide, Rack mounting brackets, Safety guide, Serial configuration cable
Features
- Enables a quick recovery from overload events.
- Ideal for colocation, large or remote data center operators
- Helps balance loads by measuring and recording amps with +/- 5% accuracy
- Empowers IT staff with real-time remote monitoring of connected loads
- Alerts of potential circuit overloads with user-defined alarms
- Upgraded to support TLS 1.2 cyber protoco
- Support for upto four simultaneous user sessions
Documentation & Downloads
Specifications
Additional
| Voltage | 200 V, 208 V, 230 V |
|---|---|
| Power Capacity | 5.0 kW |
| Operating Frequency | 50/60 Hz |
| Operating Altitude | 0 to 10,000 ft |
| Width | 17.48 in (44.4 cm) |
| Weight | 7.41 lb (3.36 kg) |
| Cord Length | 12 ft (3.66 m) |
| Mounting Position | front, rear, horizontal |
| Outlet Type and Quantity | 12 IEC 60320 C13, 4 IEC 60320 C19 |
| Storage Altitude | 0 to 50,000 ft |
| Certifications | cUL Listed, CSA, PSE, UL Listed |
| RoHS | Compliant with Exemptions |
| MercuryFree | Yes |
| Country of Origin | India |
| Current | 30 A |
|---|---|
| Load Capacity | 4992 VA |
| Operating Temperature Range | 23 to 113 F (-5 to 45 C) |
| Height | 3.46 in (8.8 cm) |
| Depth | 4.41 in (11.2 cm) |
| Rack Units | 2U |
| Number of Cables | 1 |
| Input Plug Type | NEMA L6-30P |
| Storage Temperature Range | -13 to 149 F (-25 to 65 C) |
| Relative Humidity | 5 to 95 % |
| Standards | FCC Part 15 class A, ICES-003, UL 60950 |
| ReachFreeOfSVHC | Yes |
| WEEE | Waste must be collected per EU requirements |
