APC AP7920B Switched Rack PDU 1U 2.3kW 230V/2.5kW 208V 10A/12A 8 C13 Outlets

MPN: AP7920B
UPC: 731304331612
PPN: APC-AP7920B

$1361.19

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

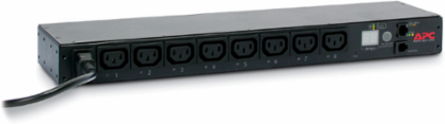

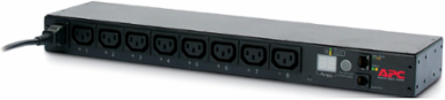

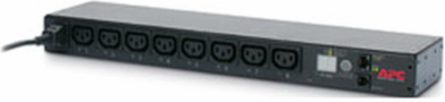

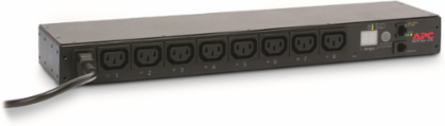

This APC Switched Rack PDU power distribution unit has a wide range of standardized PDU features that increase network efficiency, manageability and functionality. The output and input connections are (8)C13. Network management capabilities allow you to configure and manage rack PDUs from remote locations. It has has a local current monitoring display that gives a visible warning in case of an overload. The remote individual outlet control provides real-time monitoring of connected loads. It has a multi-tier user access that enables you to restrict unauthorized use of outlets. This rack has a single input power source making it easy to install.

Features

1-Year Secure Network Management Card subscription included
On/off outlet switching enable users to reboot connected equipment remotely
Plan capacity & balance loads with +/- 5% metering accuracy (amps)
Enables improved energy efficiency and scope 1 and 3 emissions tracking
Easily monitor, control and manage through EcoStruxure IT & other platforms
Ideal for colocation, large data center, or remote edge computing

Documentation & Downloads

Specifications

Additional

Voltage	200 V, 208 V, 230 V
Amperage	10 A at 230 V, 12 A at 208 V
Input Current Limit	15 A
Cord Length	6.5 ft (1.98 m)
Height	1.73 in (4.4 cm)
Weight	5.00 lb (2.27 kg)
Mounting Position	front, rear, horizontal
Outlet Type and Quantity	8 IEC 60320 C13 outlets
Mercury Free	Yes
WEEE Compliance	EU Waste Collection Compliant
Approvals	cUL Listed, CE, CSA, GOST, IRAM, UL Listed, VDE
Ambient Operating Temperature	32-113 F (0-45 C)
Relative Humidity	0-95 %
Storage Altitude	0-50,000 ft (0-15,240 m)

Power Capacity	2.3 kW at 230 V, 2.5 kW at 208 V
Frequency	50/60 Hz
Output Current	12 A
Width	17.52 in (44.5 cm)
Depth	4.25 in (10.8 cm)
Rack Height	1U
Input Connection Type	IEC 60320 C14
Material	null
RoHS	Compliant with Exemptions
Reach	Free of SVHC above threshold
Standards	EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, UL 60950
Ambient Storage Temperature	-13-149 F (-25-65 C)
Operating Altitude	0-10,000 ft
Country of Origin	India
