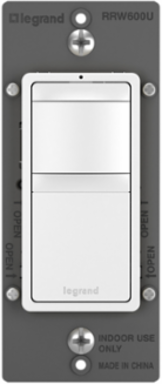

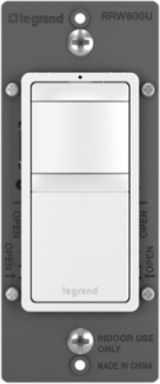

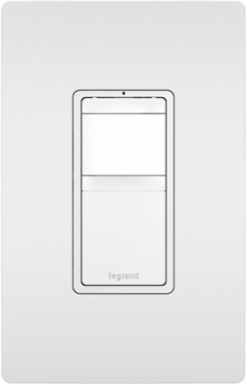

Radiant RRW600UTC radiant® Single Pole 3-Way Occupancy Sensor, Tri-Color
Radiant RRW600UTC radiant® Single Pole 3-Way Occupancy Sensor, Tri-Color
- MPN: RRW600UTC
- UPC: 785007496598
- PPN: P-S-RRW600UTC
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$42.03/ EA
Description
Simplify control while saving energy, with the radiant® Occupancy Sensor. Automatically turning the light on when someone enters a room, and shutting it off when the room is empty, this sensor includes an adjustable timed delay for shut off, as well as additional settings for more flexible control. Part of the radiant® Collection, it features clean lines and smooth paddle action for a sophisticated touch. Made exclusively for use with screwless Wall Plates from the radiant® Collection, sold separately.
Features

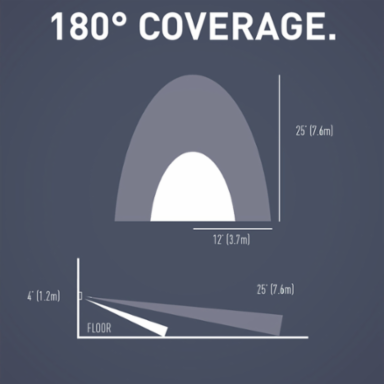

- Passive infrared (PIR) sensor switch technology with 180° coverage up to 600 sq. ft. Rated for up to 600W (5A) of LED lighting.

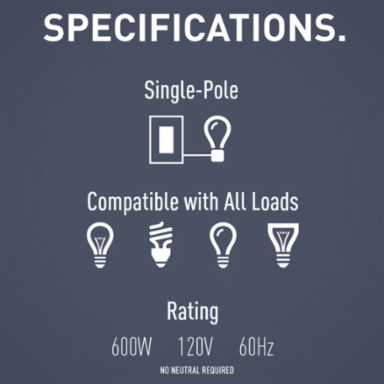

- Works with virtually any bulb/fixture, including: LED, incandescent, fluorescent, compact fluorescent (CFL), magnetic low-voltage (MLV) and electronic low-voltage (ELV), 1/6 hp.
- Turn the light on when you enter, and let it turn itself off automatically after you leave for true convenience. Perfect for bathrooms, hallways, closets, garages, and more.
- Locator light illuminates when switch is off, emitting a soft glow to help you find it in the dark.
- Features an adjustable time delay to off after no motion is detected. Delay settings range from 30 seconds to 20 minutes after the room is vacated (default 5 minute delay).
- Auto ON/Auto OFF functionality as default. Easily configurable to Manual ON/Auto OFF to meet any need or preference in the home.
- Replace any basic light or fan switch in 15 minutes or less. Supports single pole and multi-location installs. No neutral required.

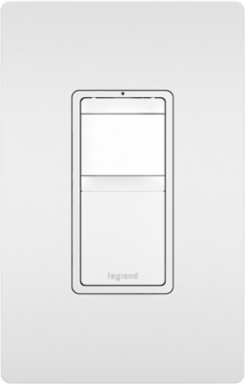

- Complete the look with a sleek, screwless radiant® Wall Plate, and coordinate with other designer switches and outlets available from the radiant® Collection.

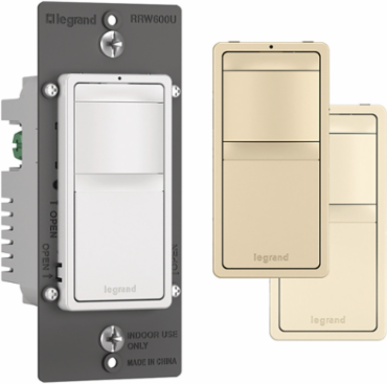

- More color options available to fit any style, including finishes to match current hardware and lighting trends.
Specifications
Specifications
- Depth
- 1.88 in
- Special Features
- Ideal for bathrooms, laundry rooms or mudrooms, garages and more, radiant® Occupancy/Vacancy Sensors offer energy savings by automatically turning lights off when a room has been vacant for a period of time.
- Width
- 1.69 in
- Country of Origin
- China
- Standard
- cULus
- Wattage
- 600.0 W
- Load Type
- Halogen
- Load Type
- Fan Motor
- Sensor Type
- Vacancy
- Indoor/Outdoor
- Indoor
- Sensor Type
- Occupancy
- Line Frequency
- 60.0 Hz
- Wire Size
- #14 - #10 AWG
- Response Frequency
- 60 Hz
- Load Rating
- 120V 5A (ELV)
- Sensor Coverage
- 600.0 sq ft
- Application Sector
- Hospitality
- Features
- Adjustable Time Delay
- Load Rating
- 120V 5A 600W (CFL)
- Number of Poles
- Multi-Location
- Sensing Range
- Major Motion 35 ft
- Number of Poles
- Single Pole 3 Way
- Horsepower Rating
- 1/6 HP @ 120 VAC
- On Function
- Selectable Auto/Manual
- Load Rating
- 120V 600VA (Fluorescent)
- Sensor Coverage Pattern
- 180.0 °
- Application Sector
- Multi-Dwelling Unit
- Environmental Conditions
- Indoor Use Only
- Sensor Technology
- Passive Infrared (PIR)
- Color
- Ivory,Light Almond,White
- Material
- Polycarbonate,Steel
Height2.63 in
TypeSwitch
Load TypeCFL
Load TypeLED
Voltage120 VAC
Sensitivity60Hz
Switch TypesofTap
Location RatingDry
Target Size180 deg
Input Voltage120 VAC
FeaturesMotion Sensor
Mounting TypeWall Box
Requires Neutral WireNo
Timer Duration5 Minutes
Switch TypeMotion Sensor
Load Rating120V 600VA (MLV)
Application SectorResidential
Installation LocationWall Box
Load Rating120V 5A 600W (LED)
Load Rating120V 600W (Halogen)
Sensing RangeMinor Motion 20 ft
Wire Connection TypeFlying Leads
Load TypeIncandescent:Fluorescent
Application SectorLight Commercial
Load Rating120V 600W (Incandescent)
Timer Duration30 Seconds-20 Minutes
Warranty TypeLimited Lifetime Warranty
Jigsaw Channel AvailabilityDistribution
Operating Humidity0-95% RH (Non-Condensing)
FinishSatin
Product LinePass & Seymour
