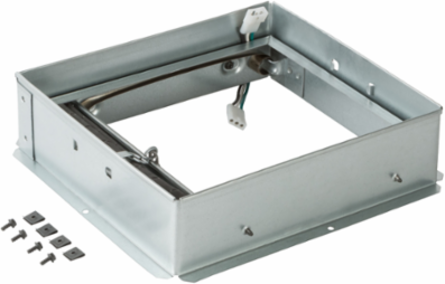

NuTone RDM2 Broan-NuTone® Radiation Damper for Roomside, Flex™ and Flex DC™ Series, Fans and Fan/Lights
- MPN: RDM2
- UPC: 026715257904
- PPN: BRO-RDM2
CAD
$220.71
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

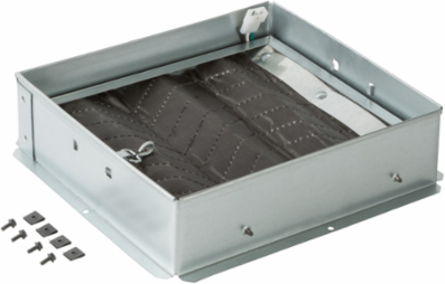

The Broan-NuTone® RDM2 Radiation Damper prevents the rapid spread of fire to other areas of a home during a fire. Many codes require that exhaust fans installed in multi-family homes, with fire-rated ceilings, must be protected by radiation dampers. When the air temperature passing through the damper exceeds 165°F, the fusible link melts, triggering the thermal fabric to automatically close across the damper. Airflow is interrupted by a flame and heat barrier, preventing the rapid spread of fire to other areas of the home.
Features
- For use in 1, 2 and 3 hour rated floor-ceiling and roof-ceiling constructions
- Galvanized steel frame
- High temperature, non-asbestos, reinforced fiber thermal fabric
- Stainless steel closure springs
- 165°F fusible link
- Separate outer frame allows complete fan and damper serviceability without disturbing the surrounding ceiling material
- For use with fans and ENERGY STAR qualified fan/lights
- Includes light jumper cable
- Meets or exceeds NFPA-90A
- UL Classified (UL-555C)
- Compatible with the following fan and fan/light models: Broan AE80K, AE80LK, AE110K, AE110LK, AER110KC, A110-B, A80-B, A80HD-B, AE110-B, AE110L-C, AE50-B, AE80B-B, AE80BL-D, AE80S-B, AE80SL-C, AE110S-B, AE110SL-C, A110F1, A80F1, AE100BF1, AE110F1, AE50F1, AE80BF1, AE80BLF1, AE50110DC, AE50110DCL, AE50110DCS, AE50110DCSL, AE50110DCF, AE50110DCLF, A000HFNF, A000HFKT, A000HSNF, A000HSKT, A000HLNF, A000HLKT NuTone AERN80KC, AERN110K, AERN50110DCKC, AEN110-B, AEN110L-C, AEN50-B, AEN80B-B, AEN80BL-D, AN110-B, AN80C-B, AEN110F1, AEN80BF1, AN000HFNF, AN000HFKT, AN000HSNF, AN000HSKT, AN000HLNF, AN000HLKT
- No drywall changes required
- Automatically triggers the thermal fabric to close
- Flexible use for multiple applications
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Length
- 9.4 in.
- Width
- 10.13 in.
- Certification File No.
- R16399
Height2.75 in.
Weight2.76 lbs.
Primary ColorGalvanized
MaterialSteel
Certifications
- cUL Listed
- Yes
- cULus Listed
- Yes
UL ListedYes
Warnock Hersey CertificationNo
