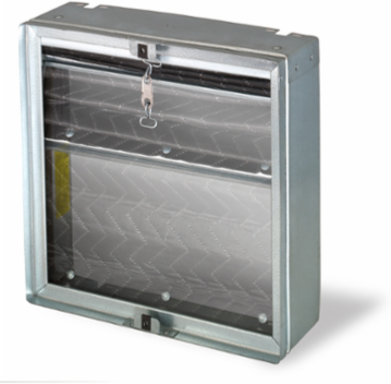

NuTone RD1 Broan-NuTone® Radiation Damper for LoSone Select® Ventilation Fans
- MPN: RD1
- UPC: 026715124749
- PPN: BRO-RD1
CAD
$148.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The Broan-NuTone® RD1 Radiation Damper prevents the rapid spread of fire to other areas of a home during a fire. Many codes require that exhaust fans installed in multi-family homes, with fire-rated ceilings, must be protected by radiation dampers. When the air temperature passing through the damper exceeds 212°F, the fusible link melts, triggering the thermal fabric to automatically close across the damper. Airflow is interrupted by a flame and heat barrier, preventing the rapid spread of fire to other areas of the home.
Features
- For use in 1, 2 and 3 hour rated floor-ceiling and roof-ceiling constructions
- Galvanized steel frame
- High temperature, non-asbestos, reinforced fiber thermal fabric
- Stainless steel closure springs
- 212°F fusible link
- Separate outer frame allows complete fan and damper serviceability without disturbing the surrounding ceiling material
- For use with fans and ENERGY STAR qualified fan/lights
- Includes light jumper cable
- Meets or exceeds NFPA-90A
- UL Classified (UL-555C)
- Compatible with the following fan and fan/light models: Broan LoSone Select® L100, L150, L200, L250, & L300 Series
- No drywall changes required
- Automatically triggers the thermal fabric to close
- Flexible use for multiple applications
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Length
- 12.5 in.
- Width
- 12.5 in.
- Certification File No.
- R16399
Height3.625 in.
Weight3.3 lbs.
Primary ColorGalvanized
MaterialSteel
Certifications
- cUL Listed
- Yes
- cULus Listed
- Yes
UL ListedYes
Warnock Hersey CertificationNo
