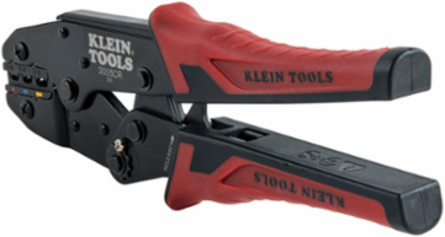

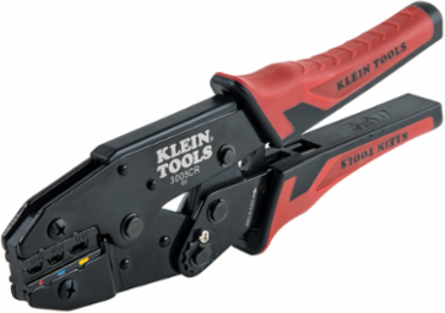

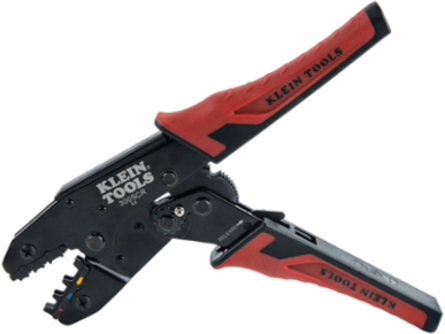

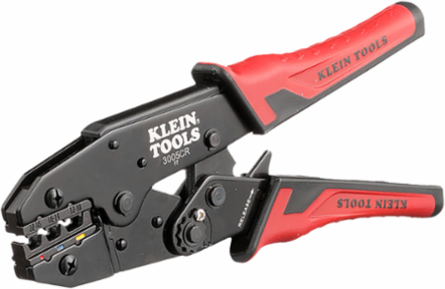

Klein Tools 3005CR Ratcheting Crimper for 10-22 AWG Insulated Terminals, 9 Inch Length, Steel
- MPN: 3005CR
- UPC: 092644344008
- PPN: KLT-3005CR
- UNSPSC: 27111518
CAD
$47.06
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

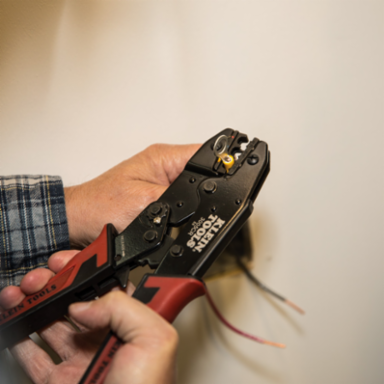

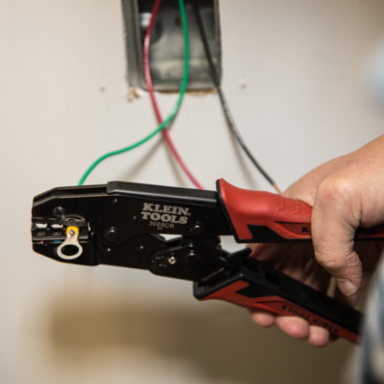

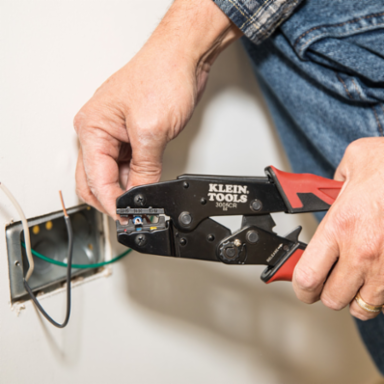

The full-cycle Ratcheting Crimper crimps 10-22 AWG insulated wire terminals. This tool features three crimping cavities in one tool with color-coded wire markings for three size ranges of insulated terminals. Crimper design provides low effort to crimp while maintaining a high terminal pull-off force. Built-in ratchet ensures full-cycle crimping for a uniform crimp every time. Compound lever-action of narrow-span handles puts more crimping power into each squeeze. Comfort grips help reduce hand fatigue.
Features
- Crimps insulated terminals onto 10-22 AWG stranded copper wire

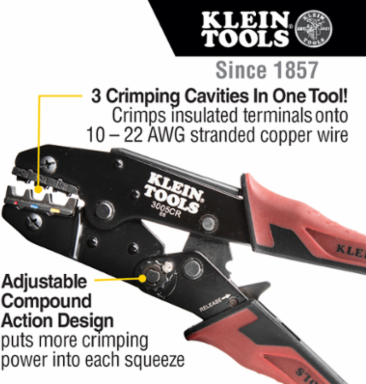

- Adjustable compound action design puts more crimping power into each squeeze

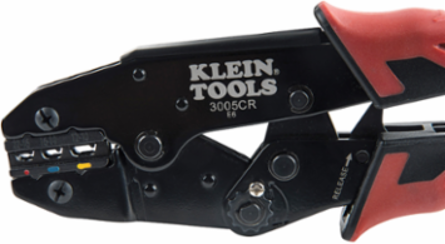

- Three crimping cavities in one tool: 22–16 AWG (Red), 16–14 AWG (Blue) and 12–10 AWG (Yellow) terminals
- Built-in ratchet ensures full-cycle crimping for a uniform crimp every time
- Unique cavity design provides consistent crimp from either side of the tool
- Dial adjusts the amount of force applied to the crimp
- Dual-material molded grips provide added comfort
- 3 Crimping Cavities
Documentation & Downloads
Specifications
Key Specifications
| Type | Ratcheting Crimper |
|---|---|
| Material | Steel |
| Connector Type | Insulated |
| Handle Finish | Dual-Material |
| Overall Height (Inch) | 0.09 |
| Overall Length (Inch) | 9 |
| Overall Width (cm) | 7.6 |
| Overall Width (Inch) | 3 |
| Width | 3.0400 in |
| Weight | 1.1880 lbs |
| Handle Color | Red, Black |
|---|---|
| Application | Wire Crimping |
| Cable Size | Front Cavity - 22-16 AWG Insulated Terminals; Mid Cavity - 16-14 AWG Insulated Terminals; Rear Cavity - 12-10 AWG Insulated Terminals |
| Weight (lb) | 1.3 |
| Overall Length (cm) | 22.9 |
| Overall Height (cm) | 0.2 |
| Weight (kg) | 0.6 |
| Height | 0.8700 in |
| Depth | 8.9400 in |
