Klein Tools 3006CR Ratcheting Non-Insulated Terminal Crimper, 10 to 22 AWG Wire
- MPN: 3006CR
- UPC: 092644340574
- PPN: KLT-3006CR
- UNSPSC: 27111518
CAD
$48.83
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The full-cycle Ratcheting Crimper crimps 10-22 AWG non-insulated wire terminals. This tool features five crimping cavities in one tool for five size ranges of non-insulated terminals. Crimper design provides low effort to crimp while maintaining a high terminal pull-off force. Built-in ratchet ensures full-cycle crimping for a uniform crimp every time. Compound lever-action of narrow-span handles puts more crimping power into each squeeze. Comfort grips help reduce hand fatigue.
Features
- Crimping Tool crimps non-insulated terminals onto 10-22 AWG stranded copper wire
- Adjustable compound action design puts more crimping power into each squeeze

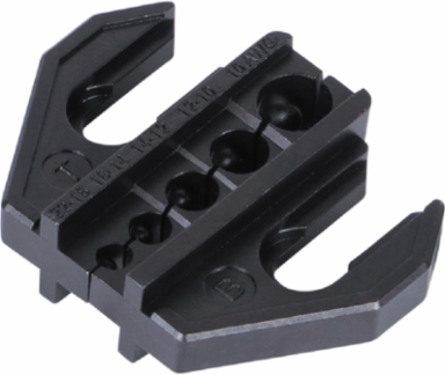

- Five crimping cavities in one tool: 22–18 AWG, 18–14 AWG, 14-12 AWG, 12-10 AWG and 10 AWG terminals
- Built-in ratchet ensures full-cycle crimping for a uniform crimp every time
- Unique cavity design provides consistent crimp from either side of the tool
- Dial adjusts the amount of force applied to the crimp
- Dual-material molded grips provide added comfort
- 4 Crimping Cavities
Documentation & Downloads
Specifications
Key Specifications
- Cable Size
- 10-22 AWG
- Connector Type
- Non-Insulated
- Handle Finish
- Dual-Material
- Material
- Steel
- Overall Height (Inch)
- 0.09
- Overall Length (Inch)
- 9
- Overall Width (cm)
- 7.6
- Overall Width (Inch)
- 3
- Width
- 3.0400 in
- Weight
- 1.1900 lbs
TypeRatcheting Crimper
ApplicationNon-Insulated Terminal Crimping on Stranded Wire
Handle ColorRed/Black
Weight (lb)1.3
Overall Length (cm)22.9
Overall Height (cm)0.2
Weight (kg)0.6
Height7.5000 in
Depth8.9300 in
