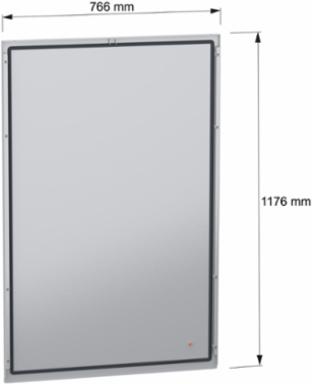

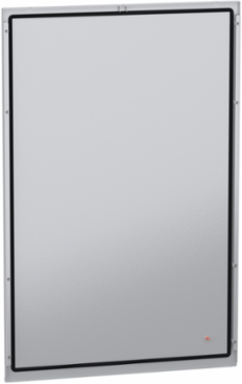

Schneider Electric NSYBPN128 Rear panel, PanelSeT SFN, for electrical enclosure H1200 W800mm, external fixing
Schneider Electric NSYBPN128 Rear panel, PanelSeT SFN, for electrical enclosure H1200 W800mm, external fixing
- MPN: NSYBPN128
- PPN: SCH-NSYBPN128
- UNSPSC: 39121302
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$331.65/ EA
Description
This steel back panel is purpose-built to assemble a PanelSeT SFN floor standing modular decarbonized steel electrical enclosure for various applications. It has a nominal height and width of 1200 mm and 800 mm, respectively. The panel is made of steel sheet. An epoxy-polyester powder finish provides a smooth appearance. It has a grey (RAL 7035) color.
Specifications
Physical Attributes
- Color
- Gray RAL 7035)
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- fixing elements, 1 rear panel
- Carbon Footprint Of The Distribution Phase A4
- 2.465026409, 2 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 3.489886426, 3 kg CO2 eq.
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 0 kg CO2 eq., 0
- Local Publishable Date
- 2025-07-10
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2507020EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- ROHS EUR In Scope
- No
- ROHS EUR Full Compliance Status
- Pro-active compliance (Product out of EU RoHS legal scope)
- China ROHS In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- WD Status
- 1 - GSC certified
- Function Option
- Standard
- Fixing Mode
- by screws captive - from the outside of enclosure
- Package Weight Lbs
- 13.500 kg
- Product Or Component Type
- rear panel
- Range Compatibility
- PanelSeT SFN
- Sustainable Packaging
- No
- Relationship Type
- Compatible relationship
- Pep Verification Date
- 2023-07-31
- PSR Version
- PSR-0005-ed2-2016 03 29
- Functional Unit Description
- Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure with dimensions H2000mm x W800mm x D600mm, while protecting against mechanical impacts (IK10-IEC 62262) and the penetration of solid objects and liquids (IP55-IEC 60529).& 10X = Total number of enclosures or cabinets = 1& 10In = Rated current allowed in this enclosure (A) = 2500A& 10Voltage range = Low Voltage& 10Current type = AC/DC Current
- Product Kit Identifier
- N
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Enclosure Nominal Dimensions- H: 1200 mm W: 800 mm, - H: 1200 mm W: 800 mm, - H: 1200 mm W: 800 mm
Carbon Footprint Of The End Of Life Phase C1 To C429 kg CO2 eq., 29.44681237
Carbon Footprint Of The Manufacturing Phase A1 To A333 kg CO2 eq., 33.43715592
Local Data StatusPublishable
Legacy WEEE ScopeOut
EOLI Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant with Exemptions
ROHS EUR Full Compliance Status IdPRO_ACTIVE_COMPLIANCE
Green Premium Status For ReportingGreen Premium product
Without Single Use PlasticNo
Return IndicatorY
Function Option IdSTANDARD
Energy Efficiency OptimizedFalse
Materialsteel
Product AvailabilityStock - Normally stocked in distribution facility
RangePanelSeT
ReturnabilityYes
Total Lifecycle Carbon Footprint69 kg CO2 eq.
Pep CodeENVPEP2301018EN
PCR VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Functional Unit Unitunit
Product ManagerJULES BARBALONGA
Environment Attributes Main
- EU ROHS Directive
- Compliant By Exemption?, Pro-active compliance (Product out of EU RoHS legal scope)
- Take Back
- No
- China ROHS Regulation
- X
- Carbon Footprint
- 68.83888113
- Environmental Disclosure
- ENVPEP2301018EN
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP2301018EN
- PCR Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
ROHS Exemption InformationYes
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI2507020EN
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2023-07-31
PSR VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- rear panel
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Height
- 47.24 in
Width31.5 in
