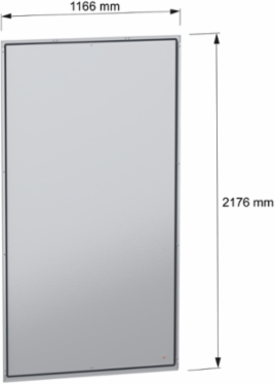

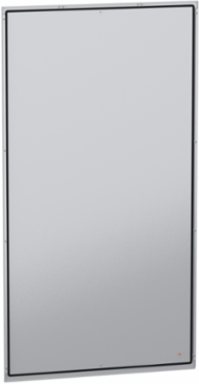

Schneider Electric NSYBPN2212 Rear panel, PanelSeT SFN, for electrical enclosure H2200 W1200mm, external fixing
Schneider Electric NSYBPN2212 Rear panel, PanelSeT SFN, for electrical enclosure H2200 W1200mm, external fixing
- MPN: NSYBPN2212
- PPN: SCH-NSYBPN2212
- UNSPSC: 39121302
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$475.72/ EA
Description
This steel back panel is purpose-built to assemble a PanelSeT SFN floor standing modular decarbonized steel electrical enclosure for various applications. It has a nominal height and width of 2200 mm and 1200 mm, respectively. The panel is made of steel sheet. An epoxy-polyester powder finish provides a smooth appearance. It has a grey (RAL 7035) color.
Features
- Built for the purpose of assembling a PanelSeT SFN electrical enclosure in kit version.
- Easy to screw by using a built-in hook that holds the panel in place during installation.
- Sturdy, robust, and durable for maximum component protection.
- Ergonomic design for convenience & time-saving operations.
- Available in different sizes to fit your installation needs.
Specifications
Physical Attributes
- Color
- Gray RAL 7035)
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- fixing elements, 1 rear panel
- Carbon Footprint Of The Distribution Phase A4
- 6.82622698, 7 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 9.664300871, 10 kg CO2 eq.
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 0 kg CO2 eq., 0
- Local Publishable Date
- 2025-07-10
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2507020EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- ROHS EUR In Scope
- No
- ROHS EUR Full Compliance Status
- Pro-active compliance (Product out of EU RoHS legal scope)
- China ROHS In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Function Option Id
- STANDARD
- Device Application
- multi-purpose
- Fixing Mode
- by screws captive - from the outside of enclosure
- Mounting Location
- rear of enclosure
- Product Availability
- Stock - Normally stocked in distribution facility
- Range
- PanelSeT
- Surface Finish
- epoxy-polyester powder
- Total Lifecycle Carbon Footprint
- 191 kg CO2 eq.
- Medium Desc
- Rear panel, PanelSeT SFN, for electrical enclosure H2200 W1200mm, external fixing
- Product Kit Identifier
- N
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional Unit Description
- Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure with dimensions H2000mm x W800mm x D600mm, while protecting against mechanical impacts (IK10-IEC 62262) and the penetration of solid objects and liquids (IP55-IEC 60529).& 10X = Total number of enclosures or cabinets = 1& 10In = Rated current allowed in this enclosure (A) = 2500A& 10Voltage range = Low Voltage& 10Current type = AC/DC Current
- Energy Model Manufacturing A1 A3 2
- Electricity Mix; Production mix; Low voltage; FR
- Energy Model Use B6 2
- Electricity Mix; Production mix; Low voltage; UE-27
- Global Commercial Status
- Commercialised
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Enclosure Nominal Dimensions- H: 2200 mm W: 1200 mm, - H: 2200 mm W: 1200 mm, - H: 2200 mm W: 1200 mm, - H: 2200 mm W: 1200 mm, - H: 2200 mm W: 1200 mm, - H: 2200 mm W: 1200 mm
Carbon Footprint Of The End Of Life Phase C1 To C482 kg CO2 eq., 81.54501887
Carbon Footprint Of The Manufacturing Phase A1 To A393 kg CO2 eq., 92.59520102
Local Data StatusPublishable
Legacy WEEE ScopeOut
EOLI Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant with Exemptions
ROHS EUR Full Compliance Status IdPRO_ACTIVE_COMPLIANCE
Green Premium Status For ReportingGreen Premium product
Without Single Use PlasticNo
Return IndicatorY
Function OptionStandard
Energy Efficiency OptimizedFalse
Materialsteel
Package Weight Lbs36.500 kg
Product Or Component Typerear panel
ReturnabilityYes
Sustainable PackagingNo
Accessory Separate Part Category2enclosure accessory
Stocking FlagY
Pep CodeENVPEP2301018EN
Pep Verification Date2023-07-31
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional Unit Unitunit
Energy Model Installation A5 2Electricity Mix; Production mix; Low voltage; UE-27
Energy Model End Of Life C1 C4 2Electricity Mix; Production mix; Low voltage; UE-27
Environment Attributes Main
- Take Back
- No, Nej
- ROHS Exemption Information
- Yes
- China ROHS Regulation
- X
- Carbon Footprint
- 190.6307477
- Environmental Disclosure
- ENVPEP2301018EN
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP2301018EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
EU ROHS DirectiveCompliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI2507020EN
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2023-07-31
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- rear panel
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Height
- 86.61 in
Width47.24 in
