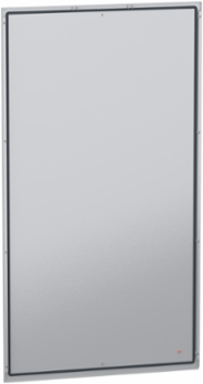

Schneider Electric NSYBPN1810 Rear Panel for PanelSeT SFN Enclosure, H1800 W1000mm, Steel, 208kg

  • MPN: NSYBPN1810
  • PPN: SCH-NSYBPN1810

CAD

$533.94

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

The Schneider Electric NSYBPN1810 Rear Panel is specifically designed for the PanelSeT SFN Enclosure, offering a robust and reliable solution for your electrical installations. Constructed from durable steel, this rear panel enhances the structural integrity of your enclosure while providing a reliable barrier for essential components. With dimensions of H1800 W1000mm, it perfectly fits the needs of various industrial applications, ensuring seamless integration into your existing setups. Weighing 208kg, this panel guarantees stability and strength, making it an essential component for maintaining secure and organized electrical environments.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
Spain

Physical Attributes

Color
Gray RAL 7035)

Important Information Attributes

Persona Type Ids
LC, OM, OM8, PB, SI
Market Segmentation Id
COMMERCIAL, INDUSTRIAL

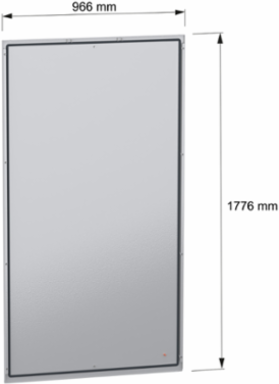

Enclosure Nominal Dimensions
- H: 1800 mm W: 1000 mm, - H: 1800 mm W: 1000 mm, - H: 1800 mm W: 1000 mm, - H: 1800 mm W: 1000 mm, - H: 1800 mm W: 1000 mm, - H: 1800 mm W: 1000 mm
Carbon Footprint Of The End-of-life Phase [C1 To C4]
57 kg CO2 eq., 56.62848533
Carbon Footprint Of The Manufacturing Phase [A1 To A3]
64 kg CO2 eq., 64.30222293
Local Data Status
Publishable
Return Indicator
Y
Stock Policy
2
Scope Perimeter
At least in Europe
End Of Life Doc Ref
ENVEOLI2507020EN
Reach Full Compliance Status Id
CONTAINS_SVHC
Rohs Eur In Scope
No
Rohs Eur Conformity Date
2306
China Rohs In Scope
Yes
With Recycled Cardboard
No
Product Contributes To Saved And Avoided Emissions
No
Tier
2
Function Option
Standard
Device Application
multi-purpose
Energy Efficiency Optimized
False
Material
steel
Product Availability
Stock - Normally stocked in distribution facility
Range
PanelSeT
Software Version
v5.9.4
Sustainable Packaging
No
Pep Code
ENVPEP2301018EN
Pep Verification Date
2023-07-31
Psr Version
PSR-0005-ed2-2016 03 29
Data Source
extrapolated product
Functional-unit Quantity
1
Reference Lifetime In Y
20
Energy Model - Installation [A5]
Electricity Mix; Production mix; Low voltage; UE-27
Energy Model - End Of Life [C1-c4]
Electricity Mix; Production mix; Low voltage; UE-27
Height Nominal
nominal: 1800 mm
Accessory / Separate Part Category
enclosure accessory
Package Weight(Lbs)
25.000 kg
Warranty (In Months)
18
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Carbon Footprint Of The Distribution Phase [A4]4.740435403, 5 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]6.711320049, 7 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]kg CO2 eq., 0
Local Publishable Date2026-04-15
Stocking FlagN
Weee ScopeOut
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Device Compositionfixing elements1 rear panel
Fixing Modeby screws captive - from the outside of enclosure
Mounting Locationrear of enclosure
Product Or Component Typerear panel
ReturnabilityYes
Surface Finishepoxy-polyester powder
Total Lifecycle Carbon Footprint132 kg CO2 eq.
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionProtect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure with dimensions H2000mm x W800mm x D600mm, while protecting against mechanical impacts (IK10-IEC 62262) and the penetration of solid objects and liquids (IP55-IEC 60529).& 10X = Total number of enclosures or cabinets = 1& 10In = Rated current allowed in this enclosure (A) = 2500A& 10Voltage range = Low Voltage& 10Current type = AC/DC Current
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; FR
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; UE-27
Recyclability Potential In %97
Width Nominalnominal: 1000 mm
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code9403999045

Environment Attributes Main

Take Back
No
China Rohs Regulation
X
Carbon Footprint
132.3824637
Environmental Disclosure
ENVPEP2301018EN
Packaging Made With Recycled Cardboard
No
Reach Regulation
Reference contains Substances of Very High Concern above the threshold
Pep Verification Date
2023-07-31
Psr Version
PSR-0005-ed2-2016 03 29
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI2507020EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticNo
Pep CodeENVPEP2301018EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review

General Attributes

Product Or Component Type
rear panel

ETIM

ETIM 8
EC002524
ETIM 9EC002524

Contractual Warranty Attributes

Warranty Period
18 months
Warranty18 months
