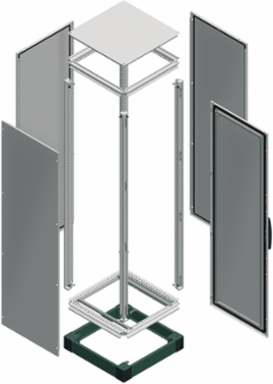

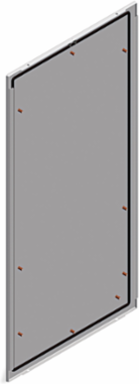

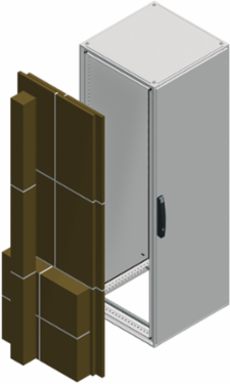

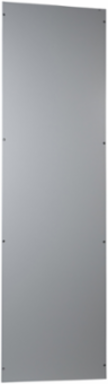

Schneider Electric NSYBP184 Spacial SF rear panel external fixing - 1800x400 mm
Schneider Electric NSYBP184 Spacial SF rear panel external fixing - 1800x400 mm
- MPN: NSYBP184
- PPN: SCH-NSYBP184
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$345.55/ EA
Description
Spacial SF Rear panel external fixing. 1799 x 400 mm. External fixing system using captive screws (fixing elements). Steel made. Epoxy-polyester powder surface finish. Grey RAL 7035.
Specifications
Physical Attributes
- Color
- Gray RAL 7035)
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- fixing elements, 1 rear panel
- Carbon Footprint Of The Distribution Phase A4
- 2.021231994, 2 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 2.328206928, 2 kg CO2 eq.
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 0 kg CO2 eq., 0
- Local Publishable Date
- 2026-04-15
- Stocking Flag
- Y
- Weee Scope
- Out
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1912
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Device Application
- multi-purpose
- Fixing Mode
- by screws captive - from the outside of enclosure
- Mounting Location
- rear of enclosure
- Product Or Component Type
- rear panel
- Range
- PanelSeT
- Software Version
- v5.9.4
- Sustainable Packaging
- No
- Accessory Separate Part Category
- enclosure accessory
- Pep Code
- ENVPEP1109023EN
- Pep Verification Date
- 2023-03-30
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 20
- Recyclability Potential, In %
- 98
- Pn
- 1
- Width Nominal
- nominal: 400 mm
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Enclosure Nominal Dimensions-, -
Carbon Footprint Of The End Of Life Phase C1 To C425 kg CO2 eq., 24.68389984
Carbon Footprint Of The Manufacturing Phase A1 To A346 kg CO2 eq., 45.62374389
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Energy Efficiency OptimizedFalse
Materialsteel
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Quantity Per Setset of 1
ReturnabilityNo
Surface Finishepoxy-polyester powder
Total Lifecycle Carbon Footprint75 kg CO2 eq.
Warranty In Months18
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionProtect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure with dimensions H2000mm x W800mm x D600mm, while protecting against mechanical impacts (IK10-IEC 62262) and the penetration of solid objects and liquids (IP55-IEC 60529) as per the standard IEC 62208.
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; FR
Offer Owner Code190789
Height Nominalnominal: 1800 mm
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 74.65708265
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP1109023EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP1109023EN
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2023-03-30
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- rear panel
ETIM
- ETIM 8
- EC002524
ETIM 9EC002524
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Country of Origin
- Spain
