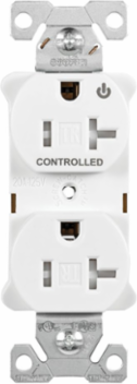

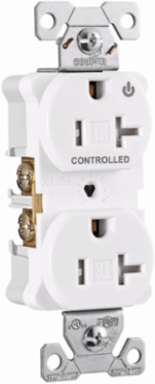

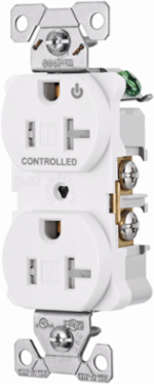

Eaton TR5362CHW Eaton Arrow Hart heavy-duty industrial specification grade dupl — Face/Body Material: Impact-resistant thermoplastic face PVC Body, Features: Tamper resistant Auto-grounding Half controlled, Color: White, NEMA Configuration: 5-20R
- MPN: TR5362CHW
- UPC: 032664744730
- PPN: COW-TR5362CHW
CAD
$21.90
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Eaton Arrow Hart heavy duty industrial specification grade duplex receptacle, Tamper resistant,auto-grounding, Half control, #14-10 AWG, 20A, Flush, 125V, White, Brass, Impact-resistant thermoplastic face,PVC body, 5-20R, 2-pole, 3-wire, ,
Specifications
Key Specifications
| Length | 1.3 in |
|---|---|
| Width | 0.84 in |
| Product Type | Heavy-duty industrial specification grade |
| Type | Half control |
| Voltage Rating | 125V |
| Application | Industrial |
| Wiring Method | Back and side |
| Mounting Method | Flush |
| Style Type | Standard |
| Connection Type | Screw |
| NEMA Configuration | 5-20R |
| Design Type | Straight blade |
| Receptacle Type | Duplex |
| Height | 4.19 in |
|---|---|
| Weight | 0.22 lbs |
| Device Type | Receptacle |
| Amperage Rating | 20A |
| Contact Material | Brass |
| Device Grade | Construction |
| Number Of Wires | Three-wire |
| Number Of Poles | Two-pole |
| Color | White |
| Allowable Wire Size | Side or Back Wiring :#10-14 Copper or Copper Clad Aluminum |
| Torque Rating | 14 lbf-inch |
| Face/Body Material | Impact-resistant thermoplastic face PVC Body |
| Product Series | Straightblade Receptacles |
