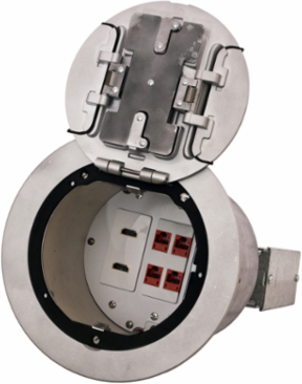

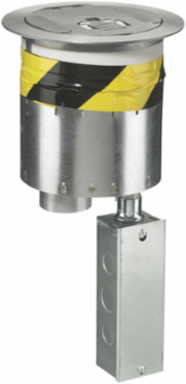

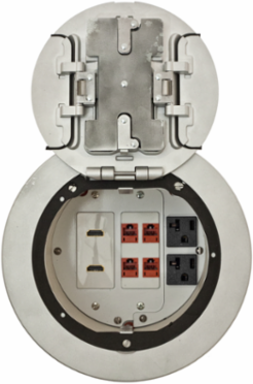

Hubbell Premise Wiring S1R6PTALU 6 Inch Fire-Rated Recessed Poke-Through Kit with Aluminum Cover
Hubbell Premise Wiring S1R6PTALU 6 Inch Fire-Rated Recessed Poke-Through Kit with Aluminum Cover
- MPN: S1R6PTALU
- UPC: 783585443423
- PPN: HBL-S1R6PTALU
- UNSPSC: 39121328
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1513.22/ EA
Description
Fire Rated Poke Throughs, Recessed 6" Series, Kit, (1) S1R6PTFIT, No Subplates, (1) S1R6CVRALU
Features
- For use with a 6.00” to 6.12” Drilled or Formed Concrete Round Hole
- Up to 2 Hour Fire Rating
- Step Down Installation
- Standard Product
Specifications
Specifications
- Country of Origin
- United States
- Core Hole
- 6 Inch
- Industry Standard(s)
- cULus Listed;Meets ADA Standards;UL 514A Listed
- Size
- Standard Sized Product
- Cable Entry
- Through Cover
- Mounting
- 6" Core Hole
- Standard
- cULus Listed;Meets ADA Standards;UL 514A Listed
- Type
- 6" Recessed Rated Poke Through Kit
- Mounting Type
- 6" Core Hole
- Description - Invoice
- S1R FRPT 6 NO SUB PLATES ALUM
- Harmonization Code
- 7326908688
- MSDS Flag
- No
- Material
- Fabricated
- BOX SIZE
- 10.600x12.800x9.300 (in)
- Carton - Number of Sub Packs
- 1
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783585443423
- Case Weight
- 9.700 lb.
- Lowest Level UOM
- Each
Application - For Use OnConcrete
Width9.300 in
Plate StyleAccepts S1R6xx Series
Application6" Fire-Rated Poke-Through Series
ColorAluminum
Special FeaturesStandard Product
Sub BrandSystemOne Recessed
General Literature Asset 1 Display TextHubbell SystemOne Recessed Fire-Rated Poke-Throughs
StyleFRPT - Complete Kits
Freight Class Code06168002
Image Actual Or RepresentativeA
Material - Mounting HardwareMounting Hardware Included
Base Unit of MeasureEA
Carton - Gross Weight per Pack9.700 lb.
Carton - Pack DescriptionCarton
Carton - Total Units1
Each - Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
