Hubbell Wiring Device-Kellems AFBS1R4BLK Recessed 4 Inch Round Cast Aluminum Floor Box with Black Cover
- MPN: AFBS1R4BLK
- UPC: 783585545240
- PPN: HBL-AFBS1R4BLK
- UNSPSC: 39121307
CAD
$733.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

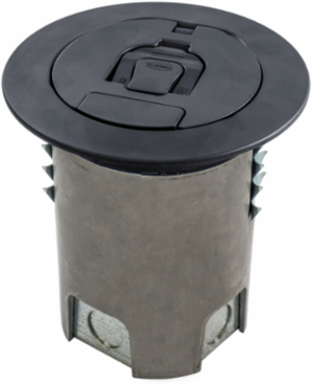

Raised Access or Wood Floorboxes, Recessed 4" Series, Cast Aluminum Box with Black Powder Coat Cover
Features
- Recessed 4" Round Floorbox

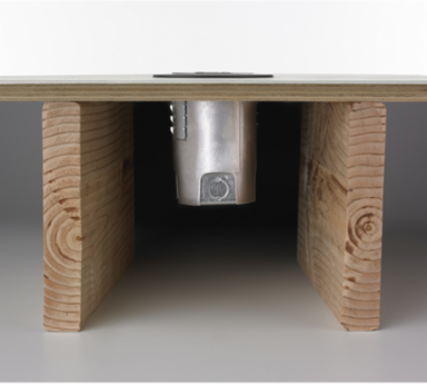

- For Use In Raised Access or Wood Floors
- Mounts in Floors 1.00" to 2.50" thick
- Kit includes (1) AFBS1R4BASE Box, (1) AFBS1R4CVRBLK Cover
- Flush Cover with Insert Option with Two Large Cable Egress Doors
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Cover Shape | Round |
| Industry Standard(s) | cULus;UL514 |
| Size | 4 Inch Round |
| Cable Entry | Through Top |
| Height | 5.65 in |
| Mounting | Mechanical Mount |
| Standard | cULus;UL514 |
| Type | Recessed Access Floor Box and Cover |
| Engineering Drawing 1 Display Text | AFBS1R4BLK AutoCAD Drawing |
| Mounting Type | Mechanical Mount |
| Description - Invoice | 4" AFB S1R4 BASE WITH BLACK COVER |
| Harmonization Code | 7616995190 |
| MSDS Flag | No |
| Buy America(n) Qualified | BABA Compliant (All status valid till December 2026) |
| Material | Composite |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 3.300 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 1 |
| Pallet - GTIN - Package | 70783585545249 |
| Pallet Length | 48.000 in |
| Pallet Width | 40.000 in |
| Application - For Use On | Raised Access; Wood |
|---|---|
| Width | 6.500 in |
| Mounting Method | Drop-Into Floor |
| Application | For Use with Raised Access Floor Boxes |
| Color | Cover;Black Finish |
| Knockouts | 4) 1/2", 1) 1/2"- 1" |
| Special Features | Flush Cover with Insert Option with Two Large Cable Egress Doors |
| Sub Brand | Raised Access/Wood Recessed Floor Boxes |
| Weight | 3.3 lb. |
| General Literature Asset 1 Display Text | Hubbell SystemOne 4-Inch Recessed Floor Box for Raised Access and Wood Floors |
| Class Code | A36 |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Sub Class Code | A36A340 |
| Construction | Fabricated |
| Series | Recessed Round - AFB Series |
| BOX SIZE | 9.200x7.400x6.500 (in) |
| Carton - Number of Sub Packs | 1 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00783585545240 |
| Case Weight | 3.300 lb. |
| Pallet Height | 46.000 in |
| Pallet Weight | 643.500 lb. |
| NAICS Code | 3359326106 |
