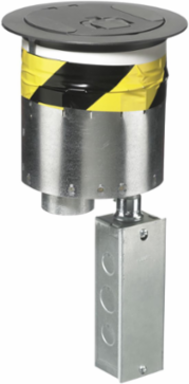

Hubbell Premise Wiring S1R6PTACEHGRY Fire-Rated 6 Inch Recessed Poke-Through Kit with Gray Cover
- MPN: S1R6PTACEHGRY
- UPC: 783585590028
- PPN: HBL-S1R6PTACEHGRY
- UNSPSC: 39121328
CAD
$1608.29
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Fire Rated Poke Throughs, Recessed 6" Series, Kit, (1) S1R6PTFIT, (1) S1R6SPA, (1) S1R6SPC, (1) S1R6SPE, (1) S1R6SPH, (1) S1R6CVRGRY
Features
- For use with a 6.00” to 6.12” Drilled or Formed Concrete Round Hole
- Up to 2 Hour Fire Rating
- Step Down Installation
- (4) 20A, pre-wired receptacles
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Core Hole | 6 Inch |
| Industry Standard(s) | cULus Listed;Meets ADA Standards;UL 514A Listed |
| Size | Standard Sized Product |
| Cable Entry | Through Cover |
| Finish | Gray Powder Coat Cover |
| Mounting | 6" Core Hole |
| Special Features | (4) 20A, pre-wired receptacles |
| Sub Brand | SystemOne Recessed |
| General Literature Asset 1 Display Text | Hubbell SystemOne Recessed Fire-Rated Poke-Throughs |
| Construction Material - Main | 6 Meunt |
| Mounting Type | 6" Core Hole |
| Style | FRPT - Complete Kits |
| Harmonization Code | 8536698000 |
| MSDS Flag | No |
| Construction | Fabricated |
| BOX SIZE | (in) |
| NAICS Code | 3359326106 |
| Application - For Use On | Concrete |
|---|---|
| Width | 9.200 in |
| Plate Style | Accepts S1R6xx Series |
| Application | 6" Fire-Rated Poke-Through Series |
| Color | Gray |
| Material | 6 Meunt |
| Number of Outlet | (2) 50% Left Side Sub Plates- (3) Extron® AAP Opening, (5) Extron® MAAP Opening, 50% Left Side, (1) Style Line® Decorator Opening, (2) Hubbell Keystone Openings and (1) 50% Left Side Sub Plate- (1) Style Line® Decorator Opening, (2) Hubbell Keystone Openings |
| Standard | cULus Listed;Meets ADA Standards;UL 514A Listed |
| Type | 6" Recessed Rated Poke Through Kit |
| Accessory Type | 6" FRPT Kit |
| Finish Type | Gray Powder Coat Cover |
| Number Of Outlets | (2) 50% Left Side Sub Plates- (3) Extron® AAP Opening, (5) Extron® MAAP Opening, 50% Left Side, (1) Style Line® Decorator Opening, (2) Hubbell Keystone Openings and (1) 50% Left Side Sub Plate- (1) Style Line® Decorator Opening, (2) Hubbell Keystone Openings |
| Freight Class Code | 06122501 |
| Image Actual Or Representative | A |
| Material - Mounting Hardware | Mounting Hardware Included |
| Base Unit of Measure | EA |
| Carton - SCC-14 Next Lower Level Sub Pack | 00783585590028 |
