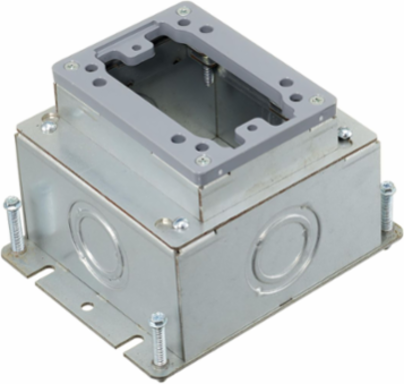

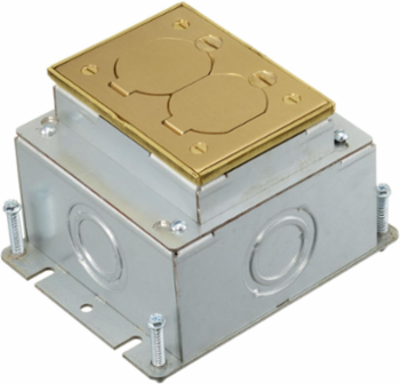

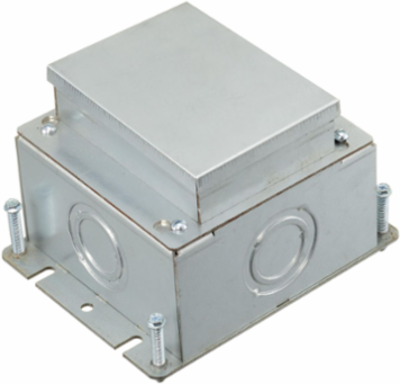

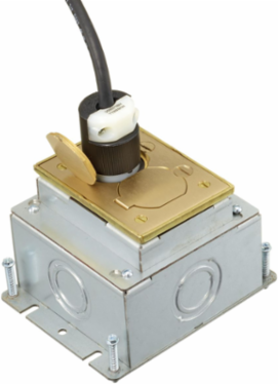

Hubbell Premise Wiring FB2431 Deep Stamped Steel Box, 1-Gang, 6 x 4.81 x 3.73 Inch, Flush Mounted
- MPN: FB2431
- UPC: 783585695952
- PPN: HBL-FB2431
- UNSPSC: 39121307
CAD
$207.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Flush Concrete Floorboxes Series, Deep Stamped Steel Box, Rectangular, 1-Gang, 3.75" Minimum Depth of Pour
Features
- 3.75" minimum depth of pour
- (6) ¾", 1", 1-1/4" concentric knockouts
- 1.25" prepour and 0.50" post pour adjustment
- Natural pregalvanized stamped steel floorbox
- Typically used in 2nd floor and above concrete floors
- Single service only
- Includes (1) 6" solid #12 AWG conductor grounding pigtail
- Stamped Steel Box with Concentric Knock-Outs
Specifications
Additional
| Number of Gang(s) | 1-Gang |
|---|---|
| Knockouts | (6) 3/4", 1", 1-1/4" concentric |
| Mounting Type | Field Installed |
| Construction | Fabricated |
| Color | Natural |
| Cover Frame Material | Thermoplastic |
| Concrete Pour Post Pour Adjustment | 0.50 in |
| Device Chamber Grounding | 6" Long #12 AWG Solid Copper Wire |
| Wiring Chamber Volume | 54.0 in3 |
| Dimensions | 6 in x 4.81 in x 3.73 in |
|---|---|
| Material | Pregalvanized Steel Top, PVC Spacer, Cast Iron, Stamped Steel |
| Mounting Method | Screw Mount Device Mounting Plates |
| Industry Standard(s) | cULus Listed to UL514 |
| Box Finish | Green Powder Paint |
| Concrete Pour Minimum Depth | 3.75 in |
| Concrete Cover | Tin Plate |
| Low Voltage Dividers | Stamped Steel |
