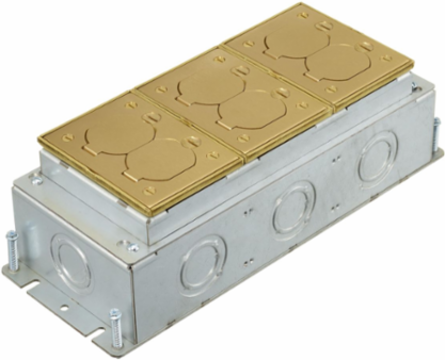

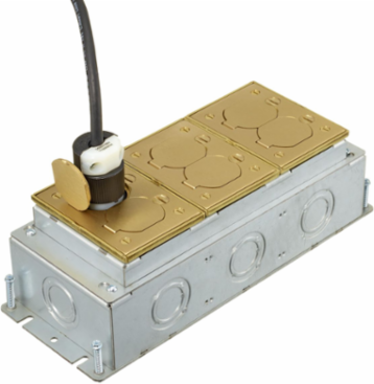

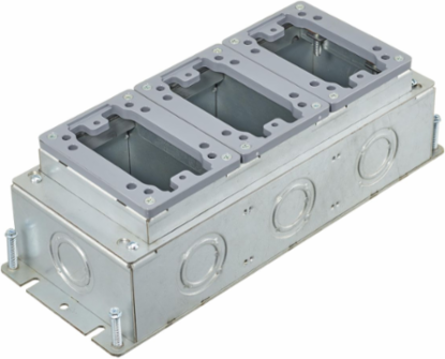

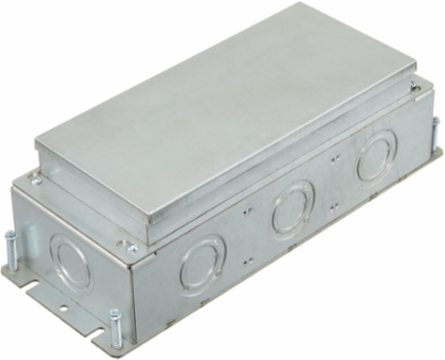

Hubbell Premise Wiring FB2433 Deep Stamped Steel Box, 3-Gang, 12.5 Inch x 4.81 Inch x 3.73 Inch
- MPN: FB2433
- UPC: 783585695976
- PPN: HBL-FB2433
- UNSPSC: 39121307
CAD
$422.66
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Flush Concrete Floorboxes Series, Deep Stamped Steel Box, Rectangular, 3-Gang, 3.75" Minimum Depth of Pour
Features
- 3.75" minimum depth of pour
- (14) ¾", 1", 1-1/4" concentric knockouts
- 1.25" prepour and 0.50" post pour adjustment
- Natural pregalvanized stamped steel floorbox
- Typically used in 2nd floor and above concrete floors
- Multi-service, includes (2) removable metallic low voltage dividers
- Each gang includes (1) 6" solid #12 AWG conductor grounding pigtail
- Stamped Steel Box with Concentric Knock-Outs
Specifications
Additional
| Size | 12.5 in x 4.81 in x 3.73 in |
|---|---|
| Knockouts | 14 concentric 3/4 in, 1 in, 1-1/4 in |
| Box Material | Pregalvanized Stamped Steel |
| Concrete Cover | Tin Plate |
| Mounting Type | Field Installed Screw Mount Device Mounting Plates |
| Concrete Pour Minimum Depth | 3.75 in |
| Industry Standard(s) | cULus Listed to UL514, UL 514A Listed, CSA C22.2 No 18 |
| Number of Gangs | 3-Gang |
|---|---|
| Material | Pregalvanized Steel Top, PVC Spacer |
| Cover Frame Material | Thermoplastic |
| Device Chamber Grounding Wire | (3) 6 in #12 AWG solid copper wire |
| Application | For Use in Concrete Floors |
| Construction | Fabricated |
| Color | Natural |
