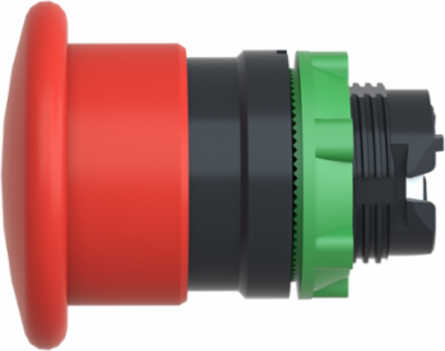

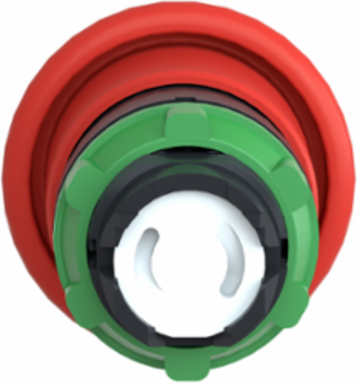

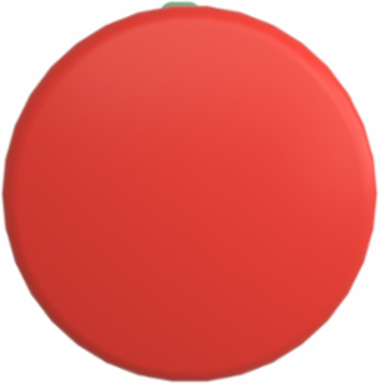

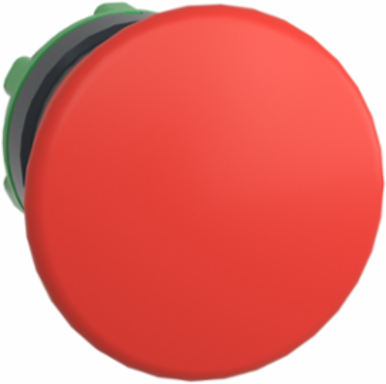

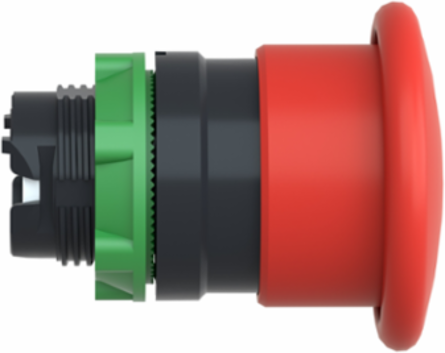

Schneider Electric ZB5AC4 Harmony XB5 Red Mushroom Push Button Head 40mm, IP66, Spring Return
- MPN: ZB5AC4
- PPN: SCH-ZB5AC4
CAD
$31.29
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This 40mm mushroom shaped red push button head is ideal when quick actions are required. It fits for a process or machine to function correctly or where operator movements require highest ergonomy. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to a prominent 40mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
Features
- The prominent 40mm mushroom-shaped profile provides a large target area that is easily identifiable and accessible from a distance, allowing operators to make rapid, high-ergonomy contact even when wearing bulky industrial gloves. The vibrant red color ensures instant visual recognition across a busy factory floor, drastically reducing reaction time when a machine cycle needs to be quickly interrupted.
- Engineered with a standard 22mm mounting diameter, this non-illuminated pushbutton head seamlessly drops into pre-existing standard industry cut-outs or Harmony XALK/XALD control stations without requiring panel modifications. It is fully compatible with the Schneider Electric Harmony XB5 modular plastic range, integrating smoothly with your existing single or double contact blocks (C1, C2, C11, and C15 configurations) to simplify component replacement or system retrofits.
- Built with a high-performance spring-return (momentary) impulse mechanism, this rugged control unit is rated for an exceptional mechanical durability of up to 5,000,000 cycles. This industrial-grade lifespan ensures dependable, long-term performance on high-repetition assembly lines and heavy machinery, eliminating premature component wear and costly production downtime.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Harmony XB5
- Type Of Operator
- spring return
- Shape Of Signaling Unit Head
- round
- Device Presentation
- basic element
- Bezel Material
- dark grey plastic
- Device Short Name
- ZB5
Mounting Diameter22 mm
Product Or Component Typehead for non-illuminated push-button
Head Typestandard
Sale Per Indivisible Quantity1
Operator Profilered mushroom Ø 40 mm, unmarked
Complementary
- Electrical Composition Code
- C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting || SR1 3 single rear mounting
- Cad Overall Height
- 40 mm
- Compatibility Code
- ZB5
- Cad Overall Width
- 40 mm
Net Weight0.046 kg
Mechanical Durability5000000 cycles
Station NameXALD 1 cut-out || XALK 1 cut-out
Cad Overall Depth52 mm
Environment
- Product Certifications
- UL listed || LROS (Lloyds register of shipping) || BV || GL || CSA || DNV
- Ambient Air Temperature For Operation
- -40-70 °C
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Ip Degree Of Protection
- IP66 IEC 60529 || IP69 || IP69K
- Ambient Air Temperature For Storage
- -40-70 °C
- Nema Degree Of Protection
- NEMA 13 || NEMA 4X
Ik Degree Of ProtectionIK03 conforming to IEC 50102
StandardsCSA C22.2 No 14 || IEC 60947-5-4 || JIS C8201-5-1 || UL 508 || IEC 60947-1 || IEC 60947-5-1 || JIS C8201-1
Vibration Resistance5 gn 2-500 Hz)IEC 60068-2-6
Resistance To High Pressure Washer7000000 Pa 55 °C 0.1 m
Overvoltage Categoryclass II IEC 60536
Protective TreatmentTH
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1710010EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- Circularity Profile
- ENVEOLI1710010EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
