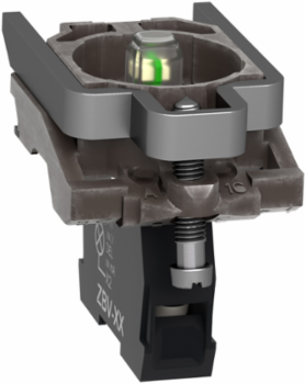

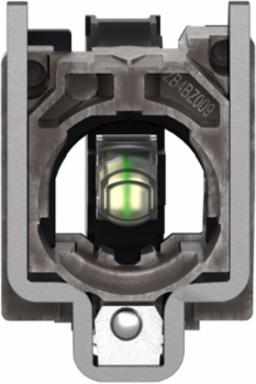

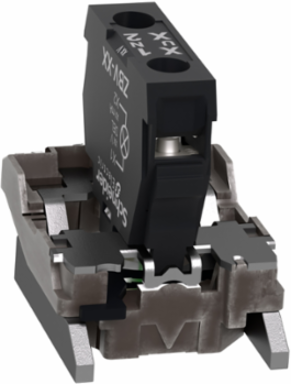

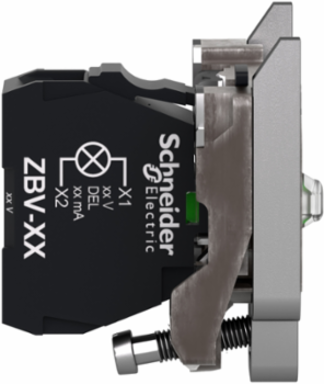

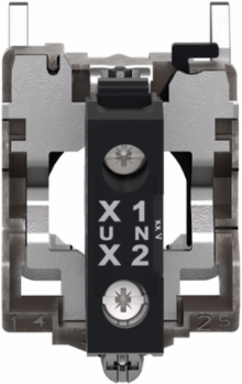

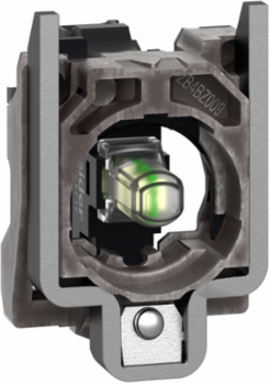

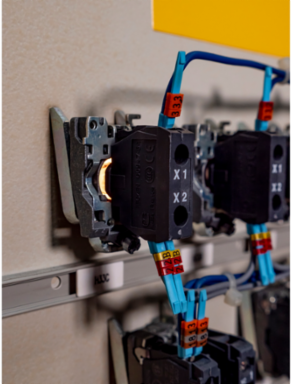

Schneider Electric ZB4BVG1 Harmony XB4 Light Block Assembly, 110-120V AC, Metal, Universal LED
- MPN: ZB4BVG1
- PPN: SCH-ZB4BVG1
CAD
$58.09
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Harmony XB4, light block with body/fixing collar is white, operates with a universal LED. It has a metal body and is compatible with Harmony XB4 pilot lights. This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push button or selector switch units via clip together assembly and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by universal LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. It is designed to fit with a standard 22mm control and signaling units, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 55°C allows versatility in usage of product.
Features
- The ZB4BVG1 is a complete "Light Block" assembly from the Schneider Electric Harmony XB4/XB5 range. It includes the mounting collar and an integrated White LED light engine. It is the "engine" that sits behind a pilot light or illuminated push-button head to provide the actual illumination for the operator.
- This specific model is designed for 110V to 120V AC (50/60 Hz) systems. This is the most common control voltage used in North American industrial panels, allowing you to wire the light directly to your control circuit without the need for additional transformers or power supplies.
- The ZB4BVG1 uses a "Protected LED" light source rather than an incandescent bulb. This provides several critical advantages: a much longer service life (typically 100,000 hours), lower power consumption, and high resistance to the vibration and shock common in industrial machinery, which frequently causes traditional filaments to fail.
- As part of the modular Harmony system, this block comes with the ZB4BZ009 metal mounting collar already attached. It is designed to snap onto any 22mm Harmony ZB4 (metal) or ZB5 (plastic) pilot light heads or illuminated push-button operators (such as the green ZB4BV033 or red ZB4BV043).
- With its metal mounting base and high-quality electronics, the ZB4BVG1 is built for heavy-duty use. It features screw clamp terminals for secure wiring (even with ferrules) and is designed to maintain the NEMA 4X / IP66 integrity of your panel when properly installed with a compatible head. It is UL Listed, CSA Certified, and CE marked for global use.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France, United States
Physical Attributes

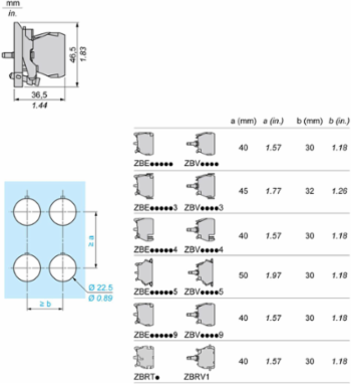

- Cad Overall Depth
- 37 mm
- Cad Overall Width
- 30 mm
Cad Overall Height47 mm
Light Source Colorwhite
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Customizable
- 0, no
- Shape Of Screw Head
- cross Philips no 1, cross pozidriv No 1slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
- Certificate Agency
- DNV, UL Listed, LROS (Lloyds register of shipping), BV, CSA
- Terminals Description Iso N°1
- (X1-X2)PL, (X1-X2)PL
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.1 kg CO2 eq., 0.0621097087
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 0.4 kg CO2 eq., 0.3902208738
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Average Percentage Of Recycled Plastic Content
- 44 %
- Compatibility Code
- ZB4
- Device Short Name
- ZB4
- Electromagnetic Emission
- class B IEC 55011
- Product Availability
- Stock - Normally stocked in distribution facility
- Protective Treatment
- TH
- Resistance To Electromagnetic Fields
- 10 V/m IEC 61000-4-3
- Resistance To Fast Transients
- 2 kV IEC 61000-4-4
- Sale Per Indivisible Quantity
- 1
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Software Version
- v5.9.4
- Tightening Torque
- 0.8-1.2 N.m IEC 60947-1
- Vibration Resistance
- 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
- Light Source Color
- white
- Pep Code
- ENVPEP2308026EN
- Pep Verification Date
- 2023-08-01
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
- [Ui] Rated Insulation Voltage
- 600 V 3)IEC 60947-1
- Connections - Terminals
- screw clamp terminals, = 1 x 0.22 mm² without cable end
- Package Weight(Lbs)
- 52.000 g
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Light Sourceuniversal LED, universal LED
Supply Voltage110...120 V
[Us] Rated Supply Voltage110...120 V, 110...120 V AC 50/60 Hz
Carbon Footprint Of The Distribution Phase [A4]0.0067997573, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0096326214, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]65 kg CO2 eq., 65.0482394366
Local Publishable Date2026-01-12
Stocking FlagN
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2308026EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Average Percentage Of Recycled Metal Content20 %
Bulb Baseintegral LED
Current Consumption14 mA
Electrical Shock Protection Classclass I conforming to IEC 60536
Fixing Collar Materialzamak
Product Or Component Typecomplete body/light block assembly
Range Of ProductHarmony XB4
Resistance To Electrostatic Discharge6 kV on contact (on metal parts) IEC 61000-2-68 kV in free air (in insulating parts) IEC 61000-2-6
ReturnabilityYes
Service Life100000 h at rated voltage and 25 °C
Signalling Typesteady
Sustainable PackagingYes
Total Lifecycle Carbon Footprint66 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Connections Terminals 8 Connections Terminalsscrew clamp terminals
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionXB4 plain lens modular green pilot light is supplied with 24V AC/DC, uses an integral LED. It has a metal bezel. This pilot light, designed to last without maintenance for a bright indication of process and machine operations, is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting LED illumination.This pushbutton power consumption is 0.432W with 71% active mode for 10 years, and it product complies with IEC 60947-1 standards..
Functional-unit UnitUnit
Energy Consumption On Product Lifetime In Kwh139.8096
Recyclability Potential In %85
[Uimp] Rated Impulse Withstand Voltage6 kV IEC 60947-1
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8531809051
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-70 °C, -40-70 °C
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 65.5170023978
- Environmental Disclosure
- ENVPEP2308026EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-08-01
- Psr Version
- PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Recycled Metal Content At Cr Level20 %
Mercury FreeYes
Circularity ProfileENVEOLI2308026EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2308026EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- complete body/light block assembly
Range Of ProductHarmony XB4
ETIM
- ETIM 8
- EC000204
ETIM 9EC000204
Surge Protection And Filtering Attributes
- Surge Withstand
- 1 kV IEC 61000-4-5
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Device Presentation
- basic sub-assemblies
