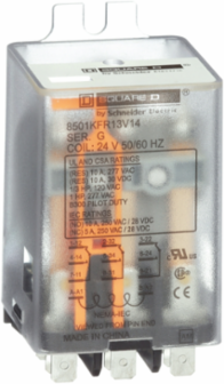

Square D 8501KFR12V14 Plug-in Relay DPDT, 1 HP at 277 VAC, 10A Resistive, Flange Mounted
- MPN: 8501KFR12V14
- UPC: 785901317425
- PPN: SCH-8501KFR12V14
CAD
$38.55
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
8501KF universal relays are designed for multipole switching applications at 300 VAC or lower. These relays are designed to be flange mounted into a panel. This flange mounted relay has DPDT contact arrangements. It has two normally open and two normally closed contacts. The contacts have a 10 ampere rating 277 VAC, a 10 ampere rating at 28 VDC, a 1/3 HP rating at 120 VAC, a 1 HP rating at 277 VAC and a B300 inductive rating. Relays can be ordered with a wide variety of coil voltages. This relay has a 24 VAC nonreplaceable coil. A green LED indicator is supplied on this relay. 8501KF relays are UL component recognized and CSA certified.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
Depth1.4 in
Complementary Attributes
- Rated Breaking Capacity
- 3 A 120 V AC inductive control circuit UL 5081.5 A 240 V AC inductive control circuit UL 508, 10 A 277 V AC resistive control circuit UL 50810 A 30 V DC resistive control circuit UL 508
- Rated Power In Hp
- 1 hp 277 V AC0.33 hp 120 V AC
Maximum Switching Voltage300 V AC30 V DC
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Operating Time
- 20 ms - pick-up, 20 ms - drop-out
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0106766201, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0006583303, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 23 kg CO2 eq., 23.2311188047
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Weee Scope
- Out
- Scope Perimeter
- Outside of Europe
- End Of Life Doc Ref
- ENVEOLI2403024EN
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Contacts Material
- silver alloy (AgNi)
- Local Signalling
- no indicator
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- 8501K
- Returnability
- Yes
- Software Version
- v5.9.4
- Switch Function
- DPDT
- Pep Code
- ENVPEP2403024EN
- Pep Verification Date
- 2022-10-01
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Installation [A5]
- Ecobilan identifier / ECO-168-
- Energy Model - End Of Life [C1-c4]
- Ecobilan identifier / ECO-168-
- Height Nominal
- 2.75 in
- [Uc] Control Circuit Voltage
- 24 V AC
- Package Weight(Lbs)
- 81.647 g
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Certificate AgencyUL Recognized, CSA, CE
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.1 kg CO2 eq., 0.128359612
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.5 kg CO2 eq., 0.5434597594
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Control Typewithout test button
Mounting Supportflange
Product Or Component Typerelay
Relay Typegeneral purpose
Shape Of Pinspade
Sustainable PackagingNo
Total Lifecycle Carbon Footprint24 kg CO2 eq.
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo control a circuit by a low-power signal with complete electrical isolation between control and controlled circuits, or where several circuits must be controlled by one signal during 10 years with a 99% use rate, in compliance with French standards.
Functional-unit Unitunité (unit)
Energy Model - Manufacturing [A1-a3]Energy model used: Mexico
Energy Model - Use [B6]Ecobilan identifier / ECO-168-
Recyclability Potential In %70
Width Nominal1.4 in
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536410060
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-131 °F, -40-131 °F
- Reach Free Shvc
- Yes
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI2403024EN
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2022-10-01
- Psr Version
- PSR-0005-ed2-2016 03 29
Take BackNo
Recycled Metal Content At Cr Level0 %
Carbon Footprint23.9142731265
Environmental DisclosureENVPEP2403024EN
Packaging Made With Recycled CardboardNo
Reach Free Of SvhcYes
Pep CodeENVPEP2403024EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- relay
Range Of Product8501K
