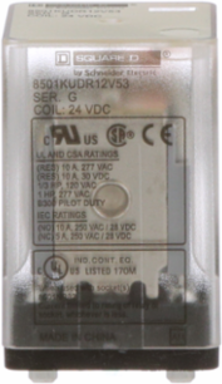

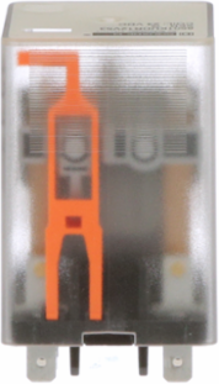

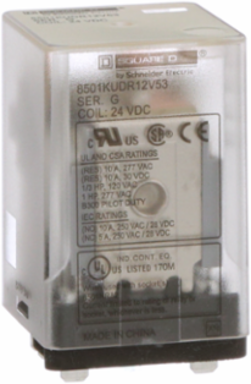

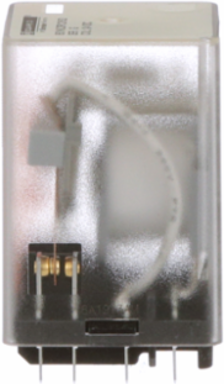

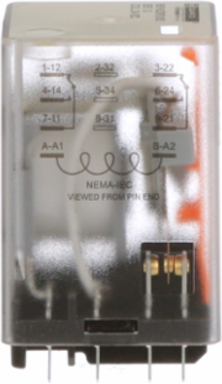

Square D 8501KUDR12V53 Plug-In Relay, DPDT, 0.5 HP at 240 VAC, 24 VDC Coil, 1.4 Inch Depth
- MPN: 8501KUDR12V53
- UPC: 785901179689
- PPN: SCH-8501KUDR12V53
CAD
$35.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
8501KU universal plug in relays are designed for multipole switching applications at 300 VAC or lower. These relays are designed to be plugged into a relay socket. This makes for very easy replacement. This relay plugs into an 851NR82 relay socket. This relay has a DPDT contact arrangements. It has two normally open and two normally closed contacts. The contacts have a 10 ampere rating 277 VAC, a 10 ampere rating at 28 VDC, a 1/3 HP rating at 120 VAC, a 1 HP rating at 277 VAC and a B300 inductive rating. Relays can be ordered with a wide variety of coil voltages. This relay has a 24 VDC nonreplaceable coil. A green LED indicator is not supplied on this relay. 8501KU relays are UL listed with Square D relay sockets, UL component recognized and CSA certified.
Documentation & Downloads
Specifications
Key Specifications
- [Uc] Control Circuit Voltage
- 24 V DC
- Relay Type
- general purpose
- Mounting Support
- socket
- Product Or Component Type
- relay
Local Signallingno indicator
Range Of Product8501K
Switch FunctionDPDT
Complementary
- Contacts Material
- silver alloy (AgNi)
- Shape Of Pin
- spade
- Operating Time
- 20 ms - pick-up || 20 ms - drop-out
- Maximum Switching Voltage
- 300 V AC || 30 V DC
Rated Power In Hp1 hp 277 V AC || 0.33 hp 120 V AC
Rated Breaking Capacity3 A 120 V AC inductive control circuit UL 508 || 1.5 A 240 V AC inductive control circuit UL 508 || 10 A 277 V AC resistive control circuit UL 508 || 10 A 30 V DC resistive control circuit UL 508
Product Compatibility8501NR82
Offer Sustainability
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Circularity ProfileN/A
Environmental DisclosureENVPEP1406038EN
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach Free Of SvhcYes
Environment
- Product Certifications
- UL listed || UL recognized || CSA || CE
- Height
- 2.25 in
- Depth
- 1.4 in
Ambient Air Temperature For Operation-40-131 °F
Width1.37 in
