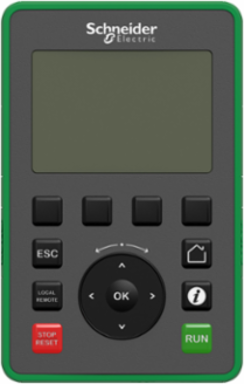

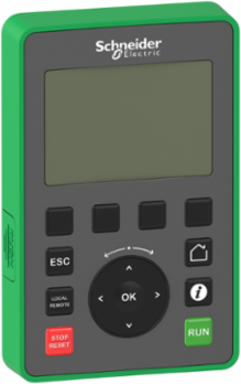

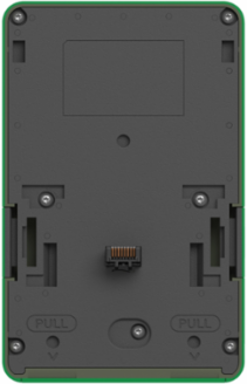

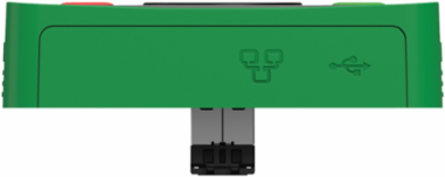

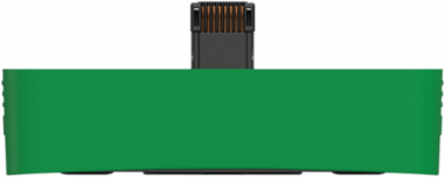

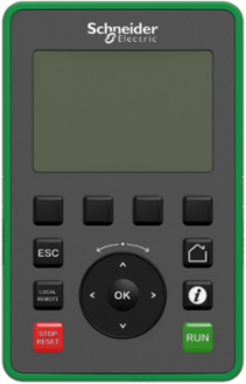

Schneider Electric VW3A1111 Graphic Display Terminal, 240 x 160 Pixels, IP65, 8 Lines Display

  • MPN: VW3A1111
  • PPN: SCH-VW3A1111
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $387.78

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    This graphic terminal is an option for variable speed drives of Altivar range. It is a dialogue option for the variable speed drive. Its protection index is IP65. This terminal can be connected and mounted on the front of the drive or on an enclosure door using a remote mounting accessory, it also can be connected to a PC to exchange files or to several drives in multidrop mode. Its maximum operating temperature is 50 °C. It provides a pixel resolution of 240 x 160 pixels and 8 lines of display. It weighs 200g. It provides 24 integrated languages (complete alphabets) covering the majority of countries around the world (other languages can be added). It is used to control, adjust and configure the drive, display the current values (motor, input/output values, etc.), save and download configurations (several configurations can be saved in the 16MB memory). A remote mounting kit for mounting on enclosure door with IP65 degree of protection is available as accessory, to be ordered separately.

    Features

    • Featuring a large, high-resolution backlit screen with support for 24 integrated languages, this graphic display terminal removes language barriers in diverse industrial environments. The intuitive icons and plain-text diagnostics allow operators to monitor Altivar and Altistart drives in their native tongue, significantly reducing human error and speeding up critical decision-making on the factory floor.
    • This terminal provides real-time access to comprehensive drive data, including trending logs, detailed fault histories, and customizable dashboards. By translating complex error codes into clear, actionable descriptions, it allows maintenance technicians to bypass the user manual and immediately begin the repair process, drastically cutting down Mean Time to Repair (MTTR) for your automated systems.
    • Engineered for both local door-mounting (IP65 rated) and handheld use, the VW3A1111 enables full configuration and parameter cloning from the safety of the panel exterior. This allows industrial engineers to copy settings from one drive to another instantly, ensuring consistent performance across multiple motor control centers while maintaining strict arc-flash safety protocols.
    • When used with the appropriate mounting kit, the terminal achieves an IP65 ingress protection rating, making it completely resistant to dust and low-pressure water jets. This heavy-duty construction ensures that sensitive electronics remain functional in wash-down zones or high-debris environments, protecting your investment and ensuring 24/7 visibility into your process control loops.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of OriginFrance, Indonesia, Singapore, United States

    Important Information Attributes

    Persona Type IdsEU, OM, OM8, SI
    Product Specific Applicationto control, adjust and configure the drive, to save and download configurations, to display the current values
    Carbon Footprint Of The Distribution Phase [A4]0.033159, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0.0042487, 0 kg CO2 eq.
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]70 kg CO2 eq., 69.552
    Local Publishable Date2026-01-12
    Stocking FlagY
    Device TypeVariable speed drive - VSD option & accessory
    TraceabilityNo
    Use Carbon Footprint69.552
    Weee ApplicabilityComponent
    Weee Exclusion RationaleComponent not in scope – non independent function
    Eoli Availability DisplayYes
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label5
    Without Single Use PlasticYes
    Dangerous Goods CodeLITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
    Tier1
    Function OptionAdvanced
    Market SegmentationIndustrial
    Display Typebacklit LCD screen white and red
    Pixel Resolution240 x 160
    Range Of ProductAltivar
    ReturnabilityYes
    Sustainable PackagingNo
    Pep CodeENVPEP2010012EN
    Pep Verification Date2020-12-01
    Psr VersionPSR-0005-ed2-EN-2016 03 29
    Data Sourcereferent product
    Functional-unit Quantity1
    Reference Lifetime In Y10
    Energy Model - Installation [A5]Electricity mix 1kV-60kV; AC; 1kV - 60kV; EU-27
    Energy Model - End Of Life [C1-c4]Electricity mix 1kV-60kV; AC; 1kV - 60kV; EU-27
    Accessory / Separate Part Categorydisplay and signalling accessories
    Accessory / Separate Part Typedisplay terminal
    Nbr. Of Units In Pkg.1
    Take-backNo
    Air Pollution (M3) Total Life Cycle6177
    Air Pollution (M3) Distribution [A4]1.4105
    Air Pollution (M3) End Of Life [C1-c4]2.8011
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3]421.93
    Global Warming (Kg.Equivalent.Co2) Total Life Cycle103.81
    Global Warming (Kg.Equivalent.Co2) Operational Energy Use [B6]69.552
    Hazardous Waste Disposed Of (Kg) Total Life Cycle31.187
    Materials For Recycling (Kg) Total Life Cycle0.1091
    Net Use Of Fresh Water (M3) Manufacturing [A1-a3]0.531
    Non-hazardous Waste Disposed Of (Kg) Total Life Cycle265.55
    Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]259.25
    Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]467.73
    Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]1208
    Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]477.26
    Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle186.5
    Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]176.97
    Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]4.0657
    Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]463.67
    Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]1208
    Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]1.561
    Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]7.9685
    Water Pollution (M3) Total Life Cycle5024.4
    Water Pollution (M3) Distribution [A4]5.4529
    Water Pollution (M3) End Of Life [C1-c4]6.547
    Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, System Integrator
    User LanguageSpanish, Romanian, Turkish, Polish, Swedish, Estonian, Bulgarian, English, Russian, Greek, Danish, Hungarian, Chinese, Norwegian, Lituanien, French, Brazilian, German, Korean, Portuguese, Finnish, Czech, Slovak, Taiwanese, Dutch, Italian, Ukrainian
    Carbon Footprint Of The End-of-life Phase [C1 To C4]0.1 kg CO2 eq., 0.1298
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]34 kg CO2 eq., 34.087
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy1
    ServiceabilityNo
    Manufacturing Carbon Footprint34.087
    End Of Life Carbon Footprint0.1298
    Weee ScopeOut
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI2010012EN
    Reach Full Compliance Status IdCONTAINS_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date2005
    China Rohs In ScopeYes
    With Recycled CardboardNo
    Product Contributes To Saved And Avoided EmissionsNo
    Tier Id1
    Function Option IdADVANCED
    Market Segmentation IdINDUSTRIAL
    Product Kit IdentifierN
    Messages Display Capacity8 lines
    Product AvailabilityStock - Normally stocked in distribution facility
    Realtime Clockbuilt-in
    Software VersionEIME v5.8.1
    Total Lifecycle Carbon Footprint104 kg CO2 eq.
    Database Version2016-11
    Pcr VersionPCR-ed3-EN-2015 04 02
    Type Of Verification For The PepIndependent internal review
    Functional-unit DescriptionThis terminal allow to control, set and configure the variator, display current values and to save and download the configurations. Calculation of the environmental impacts is based on 10 years of product service lifetime. The usage profile taken into account is 100% uptime in use phase.
    Functional-unit Unitunit
    Energy Model - Manufacturing [A1-a3]Energy model used: Indonesia
    Energy Model - Use [B6]Electricity mix 1kV-60kV; AC; 1kV - 60kV; EU-27
    Recyclability Potential In %7
    Accessory / Separate Part Destinationvariable speed drive
    Carbon Footprint (Kg Co2 Eq Total Life Cycle)103.81
    Package Weight(Lbs)284.000 g
    Warranty (In Months)18
    Air Pollution (M3) Manufacturing [A1-a3]3198.2
    Air Pollution (M3) Operational Energy Use [B6]2974.5
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Total Life Cycle1211.5
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]788.77
    Global Warming (Kg.Equivalent.Co2) Manufacturing [A1-a3]34.087
    Global Warming (Kg.Equivalent.Co2) End Of Life [C1-c4]0.1298
    Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]30.734
    Net Use Of Fresh Water (M3) Total Life Cycle251.95
    Net Use Of Fresh Water (M3) Operational Energy Use [B6]251.42
    Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]6.2975
    Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle1676.6
    Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Installation [A5]0.0554
    Total Use Of Primary Energy During The Life Cycle (Mj) Total Life Cycle1863.1
    Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]1385
    Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]9.5295
    Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle4.0657
    Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle1672.6
    Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Installation [A5]0.0554
    Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle1.561
    Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle184.94
    Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]176.97
    Water Pollution (M3) Manufacturing [A1-a3]2137.7
    Water Pollution (M3) Operational Energy Use [B6]2874.1
    Customs Code8504404000

    Environment Attributes Main

    Ambient Air Temperature For Operation-15-60 °C, -15-60 °C
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Circularity ProfileENVEOLI2010012EN
    Eu Rohs DirectiveCompliant By Exemption
    Packaging Made With Recycled CardboardNo
    Reach RegulationReference contains Substances of Very High Concern above the threshold
    Pep Verification Date2020-12-01
    Psr VersionPSR-0005-ed2-EN-2016 03 29
    Take BackNo
    China Rohs RegulationX
    Carbon Footprint103.81
    Environmental DisclosureENVPEP2010012EN
    Ip Degree Of ProtectionIP65
    Packaging Without Single Use PlasticYes
    Pep CodeENVPEP2010012EN
    Pcr VersionPCR-ed3-EN-2015 04 02
    Type Of Verification For The PepIndependent internal review

    General Attributes

    Range Of ProductAltivar

    ETIM

    ETIM 8EC002025
    ETIM 9EC002025

    Batteries & Runtime Attributes

    Removable BatteryYes
    Battery SizeCR2032
    Battery Life10 year(s)
