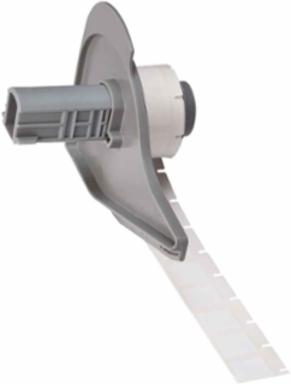

Brady M71-7-498 BMP71 Vinyl Coated Fabric Labels, 0.5" H x 0.5" W, Roll of 500 Labels
- MPN: M71-7-498
- UPC: 662820926412
- PPN: BRD-M7-17-498
- UNSPSC: 55121612
CAD
$109.99
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Permanent or repositionable: once applied, B-498 CleanLift® Series Vinyl Cloth is there to stay… unless you want to change it.
Features
- The adhesive and cloth backing offers excellent holding power, yet allow for clean removal and repositioning
- Sticks to any clean, dry surface
- Specially formulated topcoat for excellent print quality
- Semi-gloss finish for crisp, clean look
Documentation & Downloads
Specifications
Key Specifications
| Applications | Circuit Board Labeling; Wire and Cable Labeling |
|---|---|
| Brand Name | Brady® |
| Color | White |
| Diagram | Icon 3 (triangle) |
| Finish | Semi-gloss |
| Label/Media Format | Roll |
| Max. Lines of Text | 5 |
| Print Technology | Thermal Transfer |
| Printer Compatibility | BMP71 |
| Quantity per Roll | 500 |
| Recommended Ribbon | M61-R6210; M71-R6200 |
| Shape | Square |
| Total Qty per Pack | 500 Label(s) / Box |
| Trade Name | CleanLift |
| After Process | Yes, this material will work with this application |
| Label Properties | Repositionable Labels |
| Resistance Properties | Abrasion-Resistant; Chemical-Resistant; Corrosion-Resistant; Humidity-Resistant; UV-Resistant; Weather-Resistant |
| Dimensions | 0.5 in H x 0.5 in W |
| Dimensions 2 | 0.5 in H x 0.5 in W |
| Height (mm/cm/m) | 12.70 mm |
| Maximum Service Temperature °C | 80 °C |
| Maximum Wire Diameter (mm/cm/m) | 3.03 mm |
| Minimum Application Temperature °C | 10 °C |
| Minimum Service Temperature °C | -40 °C |
| Minimum Wire Gauge | 22 gauge |
| Printable Area Height (mm/cm/m) | 12.7 mm |
| Sign Size-General | 0.5 in x 0.5 in |
| Thickness (in/ft/yd) | 0.0073 in |
| Vertical Repeat | 0.625 in |
| Width (in/ft/yd) | 0.5 in |
| Wire Gauge Range | 22 gauge to 16 gauge |
| Board Application | Through Hole - Top |
|---|---|
| Bulk Part | Not a Bulk Part |
| Compatible Surface Types | Low Surface Energy |
| Enables Industry Compliance | ASTM B 117; ASTM D 1000; ASTM D 2979; ASTM G 155; UL Recognized |
| For Use with Printer | BMP®71 Label Printer |
| Manufacturer Part Number | M71-7-498 |
| Primary Noun, Basic Function | Label |
| Printer and Label Applications | Wire & Cable |
| Printer Compatibility (Print) | BMP71 |
| Quantity per Row | 1 |
| Ribbon Series | M71-R6200 |
| Suggested Ribbon Series | R6200 |
| Total Quantity | 500 |
| Adhesive Type | Repositionable Rubber |
| Brady Material Number | B-498 |
| Material | Vinyl Cloth |
| SAP B-Number | B-498 |
| Dimensions (Metric) | 12.70 mm W x 12.70 mm H |
| Height (in/ft/yd) | 0.5 in |
| Label/Tape Size (in/ft/yd) | 0.5 in H x 0.5 in W |
| Maximum Service Temperature °F | 176 °F |
| Maximum Wire Gauge | 16 gauge |
| Minimum Application Temperature °F | 50 °F |
| Minimum Service Temperature °F | -40 °F |
| Printable Area Dimensions (Metric) | 12.7 mm H x 12.7 mm W |
| Printable Area Width (mm/cm/m) | 12.7 mm |
| Size - Width (mm) | 12.70 mm |
| Thickness (mm/cm/m) | 0.185 mm |
| Vertical Repeat (mm) | 15.88 mm |
| Width (mm/cm/m) | 12.7 mm |
Regulatory Information
| Contains CA PROP 65 Substance | Yes Contains-Label not req. |
|---|---|
| Contains Heavy Metal(s) | Unavailable |
| EU RoHS Compliance | Pass 2011/65/EU(Pass 2015/863) |
| SDS Safety Data Sheet required | No = MSDS/SDS is not required |
| Contains CA PROP 65 Substance | No |
|---|---|
| DOT Regulated Product | No = not regulated by DOT |
| EU RoHS Compliant | Yes |
